Wet Back and Dry Back Boiler – Which Design Delivers Better Performance?

Part 1: Understanding the Core Difference Between Wet Back and Dry Back Boiler Designs

Fire tube boilers have long been a cornerstone of industrial heating, providing steam for countless applications from food processing to textile manufacturing. However, many buyers are unfamiliar with a fundamental design choice that significantly impacts boiler performance: the difference between a wet back and dry back boiler. So what exactly distinguishes these two designs, and how do they affect efficiency, maintenance costs, and overall lifespan?

In a dry back boiler, the reversal chamber (where flue gases turn from the first pass to the second) is located outside the water jacket and lined with refractory materials. This “dry” chamber is not cooled by water, leading to higher heat loss and increased thermal stress on the tube sheet. In contrast, a wet back boiler features a reversal chamber that is completely surrounded by water. The water absorbs heat directly, improving thermal efficiency and reducing mechanical stress on critical components. Understanding the difference between a wet back and dry back boiler is essential for any plant manager or procurement professional seeking long-term reliability and lower operating costs.

Part 2: Dry Back vs. Wet Back Boiler – Features, Advantages and ZOZEN’s Wet Back Boiler

Dry Back Boiler Characteristics

A dry back boiler has its rear tube sheet and reversal chamber lined with refractory concrete or firebrick. While this design has a lower initial manufacturing cost, it comes with several drawbacks. The refractory material degrades over time due to repeated thermal cycling, leading to cracks, gas leakage, and reduced efficiency. Maintenance of a dry back boiler often requires replacing heavy refractory doors and repairing seals, which increases downtime and long-term operating expenses.

Wet Back Boiler Characteristics and Advantages

A wet back boiler eliminates the heavy refractory rear door by submerging the reversal chamber in water. This design offers multiple benefits: higher thermal efficiency (typically 2-3% higher than dry back designs), reduced thermal stress on the tube sheet, and virtually no refractory maintenance. The wet back boiler also provides better steam quality and faster response to load changes, making it the preferred choice for most industrial applications.

When evaluating a wet back and dry back boiler, the ZOZEN WNS series stands out as a premium wet back solution with proven performance worldwide.

WNS Series Wet Back Steam Boiler

ZOZEN’s WNS series is a representative example of the wet back boiler. This horizontal fire tube boiler features a three-pass wet back design, with a corrugated furnace that enhances heat transfer and reduces thermal expansion stress. The WNS series wet back steam boiler has a thermal capacity of 1 to 20 t/h and a working pressure of 0.7 to 2 MPa. Available fuels include natural gas, coke oven gas, biogas, diesel, heavy oil, and light oil. The WNS series also achieves a thermal efficiency of over 98%, thanks to its threaded smoke tubes and optional economizer and condenser. Industries such as chemical, food, textile, printing and dyeing, pharmaceuticals, and hospitals widely adopt this wet back boiler for its reliability and low maintenance.

WNS Wet Back Hot Water Boiler

For heating applications, ZOZEN’s WNS hot water boiler also uses the wet back design. With a thermal capacity of 0.7 to 14 MW and working pressure of 0.7 to 1.25 MPa, this wet back boiler is widely used in hospitals, hotels, and district heating systems. Its fully automatic control system allows unattended operation, while the corrugated furnace and threaded smoke tubes ensure high efficiency and long service life.

WNS Skid-Mounted Wet Back Steam Boiler

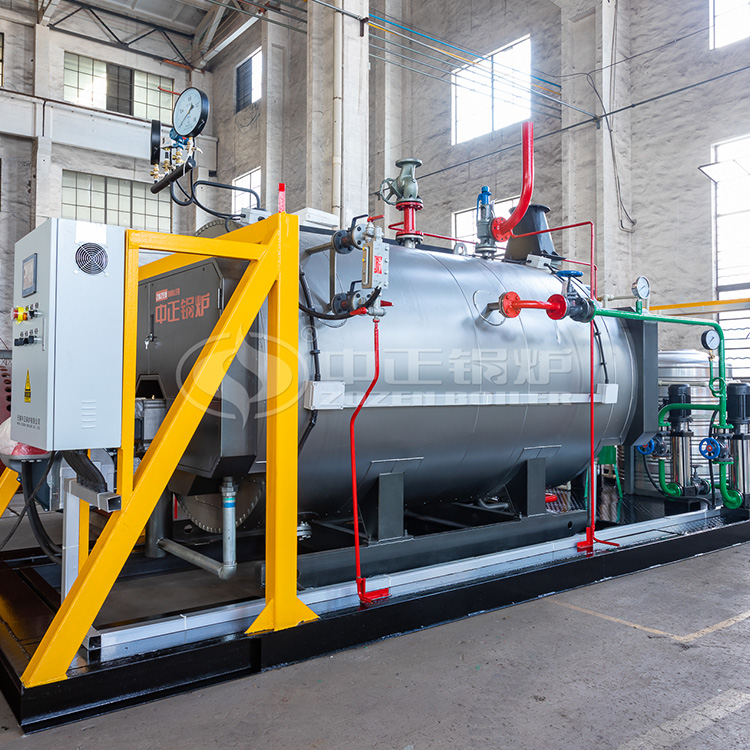

For projects requiring mobility and fast deployment, ZOZEN offers the WNS skid-mounted wet back boiler. This compact unit is pre-assembled on a steel skid, covering 1 to 4 t/h with working pressures of 1.0 to 1.6 MPa. The skid-mounted wet back boiler maintains the same three-pass wet back design and can be connected to water, gas, and electricity for operation within one day. It is ideal for temporary construction sites, remote factories, and industries with limited installation space.

WNS Skid-Mounted Wet Back Hot Water Boiler

When installation flexibility and space savings are top concerns, the WNS skid-mounted hot water boiler from ZOZEN delivers the same wet back advantages in a compact, pre-assembled package. Unlike traditional boilers that require extensive on-site assembly, this unit integrates the burner, control system, and all key components onto a single steel skid frame. Available in thermal capacities from 0.7 to 2.8 MW with working pressures of 1.0 MPa. The wet back boiler design features a three-pass configuration with a corrugated furnace and threaded smoke tubes, achieving over 93% thermal efficiency. Users only need to connect water, gas, and power to start operation within one day, and the skid-mounted structure allows easy relocation. With no special installation inspection required in many regions, this wet back boiler offers a practical, efficient, and low-maintenance heating solution for hotels, hospitals, chemical plants, and temporary construction sites.

All of these ZOZEN products share the core benefits of the wet back boiler: higher efficiency, lower maintenance, and extended operational life compared to traditional dry back designs.

Part 3: Real-World Application of a Wet Back Boiler

This real-world application demonstrates why choosing the right wet back and dry back boiler matters for productivity and operating costs.

A notable example of ZOZEN’s wet back boiler in action is a 10-ton WNS series heavy oil steam boiler shipped to a corrugated board packaging factory in Ecuador. The customer required a stable, continuous steam supply for their production line. After evaluating various options, they selected ZOZEN’s wet back boiler due to its high thermal efficiency and fuel adaptability. The wet back boiler’s water-cooled reversal chamber eliminated the need for frequent refractory maintenance, which was a key concern for the customer.

The wet back boiler delivered by ZOZEN achieved over 98% thermal efficiency, significantly reducing the factory’s fuel consumption. The fully automatic control system also allowed unattended operation, lowering labor costs. This project demonstrates how a well-designed wet back boiler can provide reliable, cost-effective steam for industrial manufacturing while minimizing downtime and maintenance expenses.

Part 4: Why ZOZEN Excels in Wet Back Boiler Solutions

In summary, the choice between a wet back and dry back boiler has long-term implications for efficiency, maintenance, and total cost of ownership. While dry back boilers may offer a lower initial price, the wet back boiler delivers superior performance and lower operating costs over its lifespan.

ZOZEN Boiler has established itself as a leader in wet back boiler technology. With over 30 years of manufacturing experience, ZOZEN holds a Grade A boiler license, ASME “S” and “U” stamps, and ISO9001:2015 certification. The company’s 150,000-square-meter production facility uses advanced automation, including robotic welding and CNC machining, to ensure consistent quality.

Furthermore, ZOZEN provides a complete service package from free solution design and technical negotiation to on-site installation guidance and operator training. With over 15,580 customers worldwide and a global service network, ZOZEN ensures that every wet back boiler operates reliably for decades. For plant managers and procurement professionals seeking a dependable wet back boiler, ZOZEN offers proven technology, international certifications, and long-term value.
