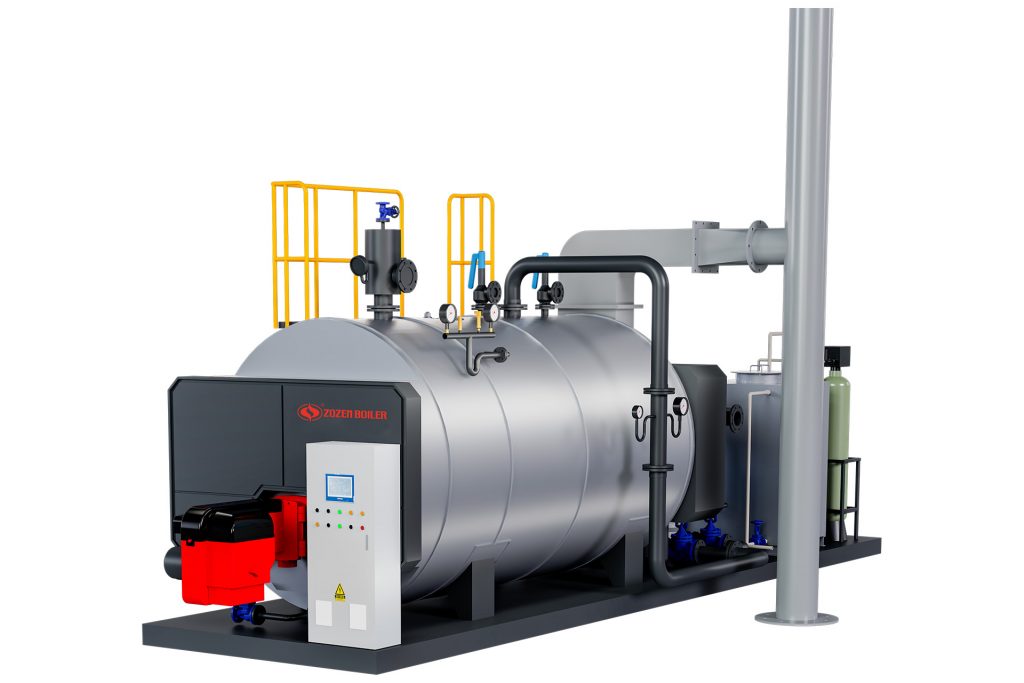

WNS gas/oil-fired skid-mounted hot water boiler
Basic Information
Capacity: 0.7-2.8 MW
Pressure: 1.0 MPa
Fuel: natural gas, coke oven gas, biogas, diesel, heavy oil, light oil, residual oil, etc.
Industries: Chemical, food, cigarettes and tobacco, textile, building materials, hospital, heating etc.
Product Description
● ZOZEN Boiler’s skid mounted boiler adopts an integrated design, with all auxiliary machines and accessories integrated on a single skid frame, resulting in a compact structure, rational layout, and effectively reduced footprint.
● Easy installation, users only need to connect water, power, and gas, and commissioning can be completed within one day for rapid start-up.
● The unique design makes the entire system easy to relocate and position, offering high flexibility.
● Customized professional burners merge the boiler control system with the burner control system, effectively enhancing the automation level of the boiler and further improving its energy-saving, environmental, and safety performance.
● Easy installation, users only need to connect water, power, and gas, and commissioning can be completed within one day for rapid start-up.
● The unique design makes the entire system easy to relocate and position, offering high flexibility.
● Customized professional burners merge the boiler control system with the burner control system, effectively enhancing the automation level of the boiler and further improving its energy-saving, environmental, and safety performance.
Product Advantage
No installation supervision inspection：No special qualifications required; convenient and time-saving
Flexible positioning：Easy to relocate and adjust placement
Rapid hookup：Easy installation; ready for use within one day
Compact footprint：Rational structure with minimal space requirement
Product Specification
| Model | Rated thermal power (MW) | Rated working pressure (MPa) | Rated output water temperature (℃) | Rated feeding water temperature (℃) | Thermal efficiency (%) | Maximum transport weight (t) | Maximum transport dimension L×W×H(m) |
| WNS0.7-1.0/95/70-Q | 0.7 | 1.0 | 95 | 70 | 93% | 7.3 | 8.00×2.20×2.32 |
| WNS1.4-1.0/95/70-Q | 1.4 | 1.0 | 95 | 70 | 93% | 8.0 | 9.00×2.20×2.36 |
| WNS2.1-1.0/95/70-Q | 2.1 | 1.0 | 95 | 70 | 93% | 12 | 9.50×2.20×2.40 |
| WNS2.8-1.0/95/70-Q | 2.8 | 1.0 | 95 | 70 | 93% | 14 | 10.50×2.22×2.48 |
