Coal Fired Water Tube Boiler: The Proven Powerhouse for Industrial Steam Generation

Part 1: Coal Remains a Pillar of Industrial Energy Supply

While the global energy landscape continues to evolve toward renewable and low-carbon sources, coal still plays an indispensable role in powering critical industries such as power generation, chemical processing, and metallurgy. In countries throughout Southeast Asia, Central Asia, and Africa, coal remains the most accessible and cost-effective fuel for large-scale industrial operations, with operating costs nearly 50 percent lower than oil or natural gas fired systems. Rather than being displaced, coal fired technology has evolved significantly, incorporating advanced combustion methods and emission control systems that make modern solutions far cleaner and more efficient. It is within this context that the coal fired water tube boiler has established itself as a preferred choice for large-scale industrial projects, distinguished by its capacity to deliver high parameters, large steam output, and an operational lifespan that often exceeds two decades. For industries demanding reliable, high-volume steam supply, the coal fired water tube boiler continues to offer an unmatched combination of performance, durability, and economic value.

Part 2: The Definition and Working Principle of Coal Fired Water Tube Boilers

A coal fired water tube boiler is a type of steam generator in which water circulates inside the tubes while high-temperature flue gas flows across the exterior of the tubes, transferring heat through the tube walls to convert water into steam. This fundamental design differs from fire tube boilers, where hot gas passes inside the tubes surrounded by water, and gives the water tube configuration distinct advantages in handling higher pressures and larger capacities. The working process begins with coal being fed onto a chain grate or into a circulating fluidized bed combustion chamber, where it is ignited and burned. The combustion generates high-temperature flue gas that first radiates heat to the water-cooled walls surrounding the furnace, then passes across convection tube bundles for additional heat transfer. As water absorbs this thermal energy, it is converted into saturated or superheated steam distributed to downstream processes. This type of boiler finds wide application in power generation, chemical manufacturing, food processing, textile production, building materials, and district heating, where consistent steam supply at specified pressure and temperature is essential.

Part 3: ZOZEN Coal Fired Water Tube Boiler Product Series

ZOZEN offers a comprehensive range of coal fired water tube boiler systems, each engineered to meet specific capacity and application requirements.

SZL series coal-fired steam boiler

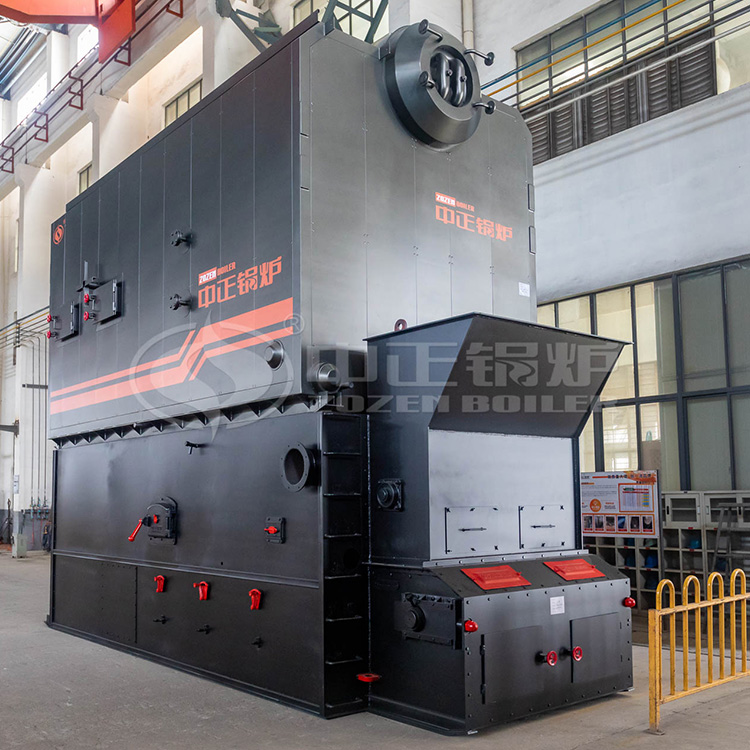

The SZL series coal fired water tube boiler is a chain grate water tube boiler with a horizontal double-drum and vertical layout. This series covers a thermal capacity of 6 to 35 tons per hour, with working pressures from 1 to 2.5 MPa and steam temperatures ranging from 184°C to 350°C. The boiler features densely arranged water-cooled walls that provide a large radiation heating area, achieving thermal efficiency above 81%. Independent air chambers allow precise air distribution across the grate for thorough fuel combustion. The SZL series coal fired water tube boiler is delivered in an assembly form consisting of two large components, reducing on-site installation work. It is suitable for heating, chemical, food, tobacco, textile, printing and dyeing, feed, medicine, building materials, wine, and hospital applications.

DHL series coal-fired steam boiler

The DHL series coal fired water tube boiler is a corner tube boiler with a self-supporting structure that eliminates the need for a heavy steel frame, significantly reducing steel consumption and foundation costs. This series offers a thermal capacity of 20 to 75 tons per hour, with working pressures from 1.25 to 5.4 MPa and steam temperatures from 184°C to 485℃ or even higher for superheated configurations. The DHL series coal fired water tube boiler features a fully enclosed membrane water-cooled wall, a flag tube convective heating surface with variable cross-section design, and a forward-rotating single-frame chain grate. The forced-natural combination water circulation system provides high-velocity flow in critical areas while maintaining natural circulation in auxiliary circuits. This series is ideal for power generation, large-scale heating, chemical processing, and rubber manufacturing.

SHX coal-fired CFB (circulating fluidized bed) steam boiler

For facilities requiring ultra-low emissions and wide fuel flexibility, the SHX series coal fired water tube boiler is a circulating fluidized bed (CFB) boiler that operates at low combustion temperatures, significantly reducing NOx formation. The SHX series coal fired water tube boiler covers a thermal capacity of 10 to 35 tons per hour, with working pressures from 1.25 to 2.5 MPa and steam temperatures from 194°C to 400℃. This series features a high-temperature cyclone separator with separation efficiency exceeding 88 percent, a large furnace design that reduces erosion and extends fuel residence time, and bell-shaped wind caps that ensure even air distribution. The SHX series coal fired water tube boiler burns bituminous coal, lean coal, anthracite, coal gangue, biomass, sludge, and pet coke, making it the most fuel-flexible option.

DHX coal-fired CFB (circulating fluidized bed) steam boiler

For larger capacity CFB applications, the DHX series coal fired water tube boiler offers a thermal capacity of 20 to 75 tons per hour, with working pressures from 1.25 to 1.6 MPa and steam temperatures up to 400℃. This series shares the same CFB technology advantages as the SHX series but with a broader capacity range. The DHX series coal fired water tube boiler achieves high combustion efficiency even with low-calorific fuels such as coal gangue and rock refuse. The resulting ash is reusable for cement and construction materials, eliminating secondary pollution.

Each of these coal fired water tube boiler series can be customized with additional equipment including economizers, air preheaters, dust collectors, and desulfurization systems based on local emission standards and fuel characteristics.

Part 4: Selecting the Right Coal Fired Water Tube Boiler for Your Project

Selecting the appropriate coal fired water tube boiler for your facility requires careful evaluation of several critical factors. The first consideration is steam capacity. You must accurately calculate your peak and average steam demand, then select a coal fired water tube boiler that meets or slightly exceeds that requirement without excessive oversizing, which would waste fuel and increase capital costs. The second factor is working pressure and steam temperature. Your production processes will dictate the required pressure and whether saturated or superheated steam is needed. A coal fired water tube boiler designed for higher pressure can always be operated at lower pressures, but the reverse is not true. The third consideration is fuel type and quality. Different grades of coal—bituminous coal, lean coal, anthracite, or coal gangue—have varying calorific values, ash content, and combustion characteristics. Your coal fired water tube boiler should be designed to burn the specific coal you plan to use, with appropriate grate design, furnace volume, and air distribution. The fourth factor is emission compliance. You must understand local environmental regulations regarding NOx, SO₂, and particulate emissions, then select a coal fired water tube boiler with the necessary emission control technologies such as low-NOx burners, in-furnace desulfurization, or post-combustion treatment. The fifth consideration is installation and maintenance. For smaller capacities, a factory-assembled coal fired water tube boiler minimizes on-site work and reduces installation time. For larger capacities, a field-assembled or bulk coal fired water tube boiler requires more on-site construction but offers greater customization and the ability to fit within transport constraints. Finally, you should evaluate the total cost of ownership, not just the initial purchase price. A more efficient coal fired water tube boiler may have a higher upfront cost but will deliver lower fuel consumption and operating costs over its lifetime.

Part 5: ZOZEN’s Technical Strength in Coal Fired Water Tube Boiler Solutions

ZOZEN Boiler has built 38 years of expertise in coal fired water tube boiler design and manufacturing since its establishment in 1988, holding ISO 9001 certification along with ASME “S” and “U” stamps for power boilers and pressure vessels, and CE certification for the European market. This comprehensive qualification portfolio enables ZOZEN to deliver customized coal fired water tube boiler solutions that meet the specific regulatory and operational requirements of different countries and regions. The company’s in-house research and development capabilities extend to proprietary combustion equipment such as self-developed chain grates and CFB combustion systems, optimized for thorough fuel combustion and long-term reliability. Every boiler undergoes rigorous quality control at ZOZEN’s manufacturing base, with automated welding processes and comprehensive non-destructive testing to ensure structural integrity. Beyond manufacturing, ZOZEN provides a complete one-stop EPC solution encompassing system design, equipment supply, installation guidance, commissioning, and operator training, giving customers a single point of accountability throughout the project lifecycle. The company’s IoT-enabled remote monitoring platform further enhances each coal fired water tube boiler installation by enabling real-time tracking of key operating parameters and predictive maintenance alerts. With a global service network spanning more than 100 countries and successful overseas projects in Indonesia, Kazakhstan, Mongolia, and throughout Southeast Asia and Africa, ZOZEN has demonstrated its ability to deliver reliable coal fired water tube boiler solutions regardless of project location or complexity.
