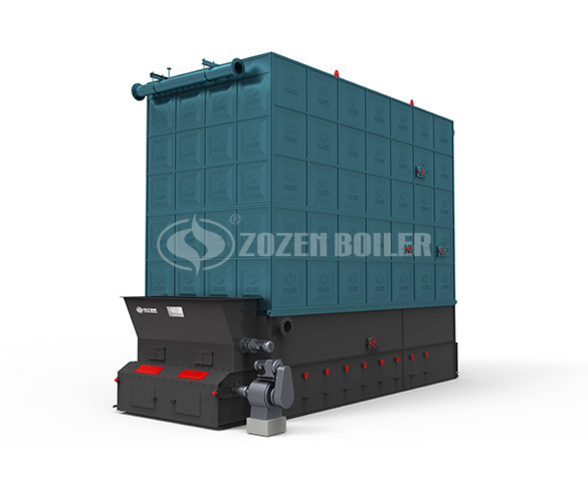

YLW Series Biomass Fired Thermal Fluid Heater
Capacity: 2800-29000 kW
Pressure: 0.8 – 1.0 Mpa
Temperature: 310 °C
Fuel: Biomass particles
Industries: Chemical, high temperature heating technology for fertilizer, melamine, alumina and so on
The YLW series thermal oil heater, with its horizontal layout and square coil tube design, uses a chain grate system for efficient fuel combustion. It incorporates mechanical features for solid fuel feeding, ventilation, and slag removal. During operation, fuel undergoes radiation and convection heat exchanges, proceeds to the waste heat boiler, and subsequently moves to the air preheater and dust remover. The remaining flue gas is then expelled into the atmosphere, resulting in optimal heat transfer and efficient industrial heating.
Long Service Life
Convective heating surface with effective fixed and structural support, better extend the service life of the boiler.
Simply Operation
The patented combustion arch technology makes different types of fuels easy to burn.
Reduce Fuel Consumption
The interior is made of high quality firebrick and the middle is made of high quality perlite. Control the furnace temperature below 50℃ to minimize the loss.
The furnace body adopts double coil, heating surface is sufficient.
| Model | Rated thermal power (kW) | Rated thermal power (×104kcal/h) | Design working temperature (≤℃) | Rated working pressure (MPa) | Thermal efficiency (≥%) | Maximum transport weight (t) | Maximum transport dimension (m) |
| YLW-2800SCⅢ | 2800 | 240 | 310 | 0.8 | 83 | 16.0 | 6.40×2.55×3.15 |
| YLW-3500SCⅢ | 3500 | 300 | 310 | 0.8 | 83 | 21.0 | 7.20×2.50×3.30 |
| YLW-4200SCⅢ | 4200 | 360 | 310 | 0.8 | 83 | 25.0 | 7.40×3.00×3.35 |
| YLW-4600SCⅢ | 4600 | 400 | 310 | 0.8 | 83 | 28.0 | 8.10×3.00×3.40 |
| YLW-6000SCⅢ | 6000 | 500 | 310 | 0.8 | 83 | 35.0 | 8.40×3.50×3.40 |
| YLW-7000SCⅢ | 7000 | 600 | 310 | 0.8 | 83 | 30.0 | 9.10×3.50×3.50 |
| YLW-8200SCⅢ | 8200 | 700 | 310 | 0.8 | 86 | 35.0 | 9.75×3.50×4.10 |
| YLW-9400SCⅢ | 9400 | 800 | 310 | 0.8 | 86 | 28.0 | 10.85×3.70×4.10 |
| YLW-10500SCⅢ | 10500 | 900 | 310 | 0.8 | 86 | 30.0 | 11.60×3.70×4.10 |
| YLW-12000SCⅢ | 12000 | 1000 | 310 | 0.8 | 86 | 32.0 | 12.30×3.70×4.10 |
| YLW-14000SCⅢ | 14000 | 1200 | 310 | 0.8 | 86 | 34.0 | 9.60×4.10×3.90 |
| YLW-16500SCⅢ | 16500 | 1400 | 310 | 0.8 | 86 | 38.0 | 11.30×4.50×4.10 |
| YLW-19000SCⅢ | 19000 | 1600 | 310 | 0.8 | 86 | 30.0 | 11.80×4.80×3.90 |
| YLW-21000SCⅢ | 21000 | 1800 | 310 | 0.8 | 86 | 35.0 | 11.80×4.80×3.90 |
| YLW-24000SCⅢ | 24000 | 2000 | 310 | 0.8 | 86 | 38.0 | 12.30×3.00×4.00 |
| YLW-25600SCⅢ | 25600 | 2200 | 310 | 0.8 | 86 | 22.0 | 12.30×3.20×4.10 |
| YLW-29200SCⅢ | 29200 | 2500 | 310 | 0.8 | 86 | 25.0 | 12.30×3.20×4.10 |
