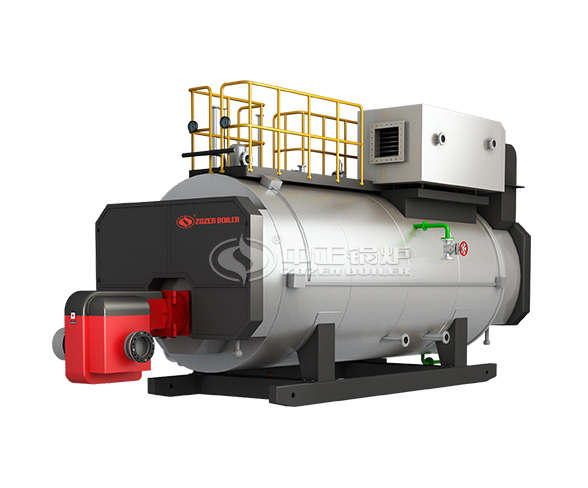

WNS Series Industrial Gas Oil Fired Hot Water Boiler
Capacity: 0.7 – 14 MW
Pressure: 0.7 – 1.25 Mpa
Fuel: Nature gas, coke oven gas, biogas, methanol, liquid propane gas, diesel, heavy oil, light oil, crude oil, etc.
Industries: Heat supplying, hospital, hotel
WNS series gas / oil fired hot water boiler adopts advanced structure, the boiler structure is compact, occupies a small area, installs quickly. The boiler adopts advanced mechatronics automatic control technology, high quality silicic acid encryption and insulation, reduce heat loss. Horizontal industrial boiler composes furnace body, access door hole, front and rear smoke chamber, insulation layer cover, burner interface, pipes, valves and instruments, platform and stairs, instruments and safety devices, supporting accessories, electrical control cabinet.
Easy to Install and Maintain
Adopt the whole quick loading structure, the boiler structure is compact, occupies a small area, installs quickly.Boiler with access door hole, convenient maintenance.
Automatic Control System
The boiler adopts advanced mechatronics automatic control technology.Remote human-computer interaction and data sharing can be realized through mobile Internet.
Combustion Chamber
The steam boiler adopts the combustion chamber arranged in low position, which makes the boiler water level safety range wider, boiler steam space larger, steam quality is well guaranteed.
Boiler heating surface layout is sufficient, boiler start fast, short load time.
Low Cost
The international famous brand burner is adopted to realize the efficient combustion of the boiler, save fuel, reduce pollution, noise and exhaust emissions.
| Model | Rated thermal power (MW) | Rated working pressure (MPa) | Rated output water temperature (℃) | Rated feeding water temperature (℃) | Maximum transport weight (t) | Maximum transport dimension (m) |
| WNS0.7-0.7/95/70-Q(Y) | 0.7 | 0.7 | 95 | 70 | 4.0 | 3.25×1.80×2.10 |
| WNS1.4-0.7/95/70-Q(Y) | 1.4 | 0.7 | 95 | 70 | 8.3 | 4.40×2.16×2.52 |
| WNS2.1-0.7/95/70-Q(Y) | 2.1 | 0.7 | 95 | 70 | 8.9 | 4.70×2.40×2.75 |
| WNS2.8-0.7/95/70-Q(Y) | 2.8 | 0.7 | 95 | 70 | 13.3 | 4.95×2.55×2.95 |
| WNS3.5-0.7/95/70-Q(Y) | 3.5 | 0.7 | 95 | 70 | 14.3 | 5.35×2.65×3.30 |
| WNS4.2-1.0/115/70-Q(Y) | 4.2 | 1.0 | 115 | 70 | 19.5 | 5.95×2.75×3.15 |
| WNS5.6-1.0/115/70-Q(Y) | 5.6 | 1.0 | 115 | 70 | 22.6 | 7.05×2.80×3.25 |
| WNS7-1.0/115/70-Q(Y) | 7.0 | 1.0 | 115 | 70 | 25.8 | 7.05×2.80×3.25 |
| WNS10.5-1.0/115/70-Q(Y) | 10.5 | 1.0 | 115 | 70 | 33.0 | 7.90×3.45×3.70 |
| WNS14-1.0/115/70-Q(Y) | 14 | 1.0 | 115 | 70 | 46.0 | 8.00×3.75×3.95 |
