Understanding Water Tube Boiler Types – Applications, Selection, and ZOZEN’s Solutions

Part 1: What Are Water Tube Boilers and Why Do Water Tube Boiler Types Matter?

A water tube boiler is a type of industrial steam generator where water circulates inside the tubes while hot combustion gases flow around them.Because the water volume inside the tubes is relatively small, a water tube boiler can respond quickly to load changes and operate at much higher pressures and temperatures.

Water tube boilers are widely used in industries that require large amounts of high-pressure, high-temperature steam. Typical applications include power generation, chemical processing, food production, textile manufacturing, printing and dyeing, pharmaceuticals, building materials, breweries, rubber processing, and hospital heating systems. In these sectors, steam is not just for heating but often directly involved in production processes such as sterilization, drying, distillation, and chemical reactions.

However, not all water tube boiler types are the same. Different fuel sources, capacity requirements, pressure levels, and emission standards demand different boiler configurations. Choosing the wrong type can lead to low efficiency, high fuel costs, frequent maintenance, or even safety risks. Therefore, understanding the various water tube boiler types available in the market is essential for making a cost-effective and reliable investment.

Part 2: Main Water Tube Boiler Types by Fuel

ZOZEN offers several water tube boiler types, each designed for specific fuels and operating conditions. Below is a detailed breakdown based on fuel category:

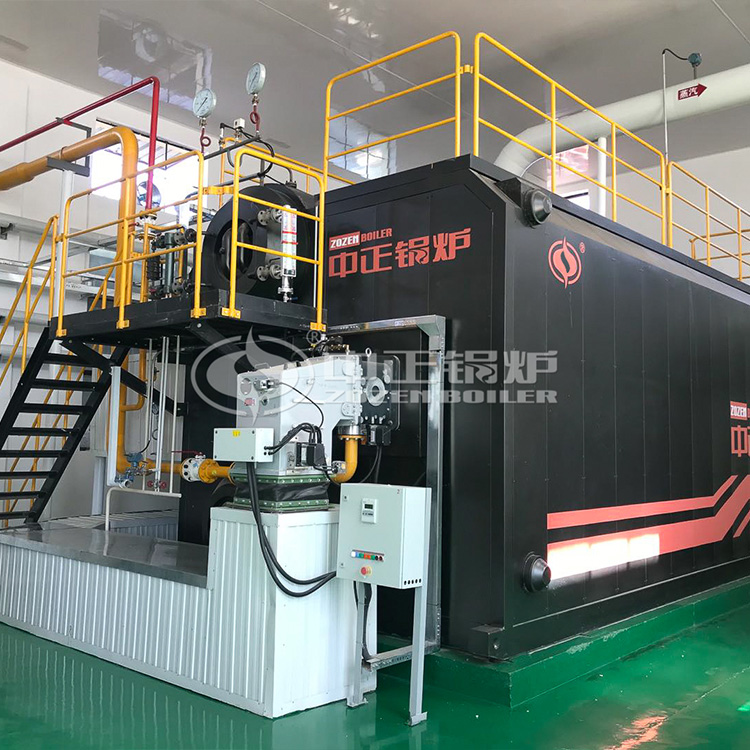

Gas and Oil Fired Water Tube Boilers – SZS Series

The SZS series is a typical water tube boiler designed for gas and oil fuels. It features a double-drum, longitudinal “D” type chamber structure with a membrane water-cooled wall. This design ensures high thermal efficiency, low heat loss, and a long service life of over 20 years. The SZS series covers a thermal capacity of 2 to 110 t/h, with working pressures from 1.25 to 5.3 MPa and steam temperatures ranging from 194°C up to 540°C. It is compatible with natural gas, coke oven gas, blast furnace gas, carbon black tail gas, biogas, diesel, heavy oil, and light oil. Key advantages include thermal efficiency of >98%, NOx emissions as low as 30 mg/Nm³ with a low-NOx burner, and fully automatic IoT-enabled operation. This is one of the most popular water tube boiler types for large industrial plants and power stations.

Biomass Fired Water Tube Boilers

SZL series biomass-fired steam boiler

The SZL series biomass fired steam boiler is a chain grate water tube boiler engineered with advanced international technology. It features a horizontal double-drum, vertical layout, with heating surfaces in the upper section and combustion equipment below. The furnace is enclosed by water-cooled walls, connected to the upper drum and lower headers to form a combustion chamber that absorbs radiant heat. At the rear, a convection tube bundle is arranged between the upper and lower drums, with high-temperature flue gas passing through the bundle, then an economizer, before being discharged. Designed for thermal capacities of 6–35 t/h and working pressures of 1–2.5 MPa, it efficiently burns biomass pellets, wood chips, corn cobs, palm shells, and rice husks. With a thermal efficiency exceeding 86%, it delivers reliable, eco-friendly steam for heating, chemical, food, textile, pharmaceutical, and hospital applications.

DZL series biomass-fired steam boiler

The DZL series biomass-fired steam boiler is a three-drum water tube boiler independently developed by ZOZEN with proprietary intellectual property rights, adopting an assembly structure and featuring a tall furnace design that is 1–3 meters higher than conventional boilers to ensure complete combustion of both formed and unformed biomass fuels; it delivers a steam capacity of 10 to 40 t/h, working pressures of 1.25 MPa, 1.6 MPa or 2.5 MPa, steam temperatures of 194°C, 204°C or 225°C, and a high thermal efficiency exceeding 88%, with wide fuel adaptability for biomass pellets, rice husks, wood chips, palm shells and sawdust, enhanced heat transfer efficiency from densely arranged water-cooled tubes and optimized flue gas flow, an online ash-blowing system enabling ash removal without shutdown for continuous operation, and advanced automated controls plus dedicated maintenance platforms for simple operation and easy upkeep, making it a highly reliable and efficient water tube boiler type widely suitable for heating, chemical, food, textile, pharmaceutical, rubber and hospital industries.

DZW series biomass-fired steam boiler

The DZW series biomass fired reciprocating grate steam boiler is another water tube design, specifically engineered for high-moisture bulk biomass fuels such as formwork, wood chips, and palm shells. Thermal capacity is 15 to 35 t/h, with working pressures of 1.25, 1.6, or 2.5 MPa, and steam temperatures of 194°C, 204°C or 225°C, achieving a thermal efficiency over 86.7%. The reciprocating grate ensures stable combustion even with fuels that have high ash content or poor flow characteristics. It is equipped with a reliable reciprocating grate and independent air chambers to ensure stable and complete combustion even for high-ash or poor-flow fuels, featuring full-seal water-cooled membrane walls and optimized flue gas flow to minimize dead zones and enhance heat transfer efficiency, an online ash-blowing system on tail convection surfaces for fuel-adaptable ash removal without shutdown, and a high-automation control system plus a strategically arranged maintenance platform for simple operation and easy access to all service points, making it a robust and efficient water tube boiler type well-suited for heating, chemical, food, textile, pharmaceutical, rubber and hospital industries.

Coal Fired Water Tube Boilers

SZL series coal-fired steam boiler

The SZL series coal-fired steam boiler is a horizontal double-drum vertical-layout chain grate water tube boiler developed by ZOZEN, integrating mature international technology with optimized domestic design; it delivers a thermal capacity of 6–35 t/h, working pressure of 1–2.5 MPa, and steam temperature ranging from 184°C to 350°C, with thermal efficiency over 81%, supporting versatile coal fuels including bituminous coal, lean coal, and anthracite, and featuring a layered combustion chain grate with dual-layer frame to prevent skewing or jamming, plus independent air chambers for precise air distribution ensuring thorough coal combustion, densely arranged furnace water-cooled walls forming a large radiation heating surface for efficient heat absorption, a two-pass convection tube bundle and separate economizer to enhance heat recovery, and key safety configurations such as spring full-lift safety valves and ultra-low water level electrode interlocks for stable and safe operation, alongside automated fuel and ash handling systems for simple daily operation, making it a reliable, cost-effective coal-fired heating solution widely applied in heating, chemical, food, textile, pharmaceutical, and hospital industries.

DHL series coal-fired steam boiler

The DHL series coal-fired steam boiler is a high-capacity corner tube water tube boiler independently designed by ZOZEN, featuring a self-supporting structure that eliminates the need for heavy steel frames for compact layout and cost savings; it offers a thermal capacity of 20 to 75 t/h, working pressures from 1.25 to 5.4 MPa, and steam temperatures spanning 184°C to 485°C with a thermal efficiency of 82%, supporting a wide range of coal fuels including bituminous coal, lean coal, and anthracite, equipped with a self-developed forward-rotating single-frame chain grate for low slag carbon and high combustion efficiency, full-seal water-cooled membrane walls and flag-type convection heating surfaces ensuring uniform smoke flow and efficient heat transfer, an advanced intelligent control system enabling automated fuel feeding, ash and slag discharge for unmanned operation, and customizable feed, slag and flue gas treatment systems to meet diverse site requirements, making it a robust, high-efficiency water tube boiler type perfectly suited for power generation, large-scale heating, chemical, food and rubber industrial applications.

Each of these water tube boiler types addresses a specific fuel and application scenario, giving customers the flexibility to choose the most economical and efficient solution for their plant.

Part 3: Advantages of ZOZEN Water Tube Boilers

ZOZEN’ s water tube boiler types share several common advantages that make them a preferred choice for industrial buyers worldwide.

First, all ZOZEN water tube boilers are built with high thermal efficiency, typically exceeding 86% for biomass, 81% for coal, and 98% for gas/oil models. Second, they feature fully automatic control systems with remote monitoring, enabling unattended safe operation. Third, ZOZEN designs its water tube boilers for easy maintenance, with manholes, inspection doors, and strategically placed cleaning access points. Fourth, ZOZEN provides a complete one-stop service from solution design and technical negotiation to installation guidance and operator training.

Real-world examples confirm the reliability of ZOZEN’ s water tube boiler types. For example, ZOZEN delivered the SZS series 35 t/h gas-fired water tube steam boiler to Guizhou Jinyuan Power Plant for its oil-to-gas fuel switch project. This D-type dual-drum water tube boiler, operating at 1.25 MPa and 350°C, achieved over 98% thermal efficiency and ultra-low NOx emissions. It now provides stable, clean steam for power generation, reducing CO₂ emissions by 53% and helping the plant save over 6 million RMB annually in fuel costs.

Moreover, ZOZEN has extensive experience in biomass water tube boiler projects across Southeast Asia, including palm oil mills in Indonesia and rice processing plants in Thailand. These projects demonstrate that ZOZEN’ s water tube boiler types can handle challenging fuels, maintain high efficiency under continuous operation, and meet local emission standards.

In summary, whether you need a gas-fired SZS series for a power plant, a coal-fired SZL series for a textile mill, or a biomass-fired DZL three-drum boiler for a palm oil mill, ZOZEN offers proven, efficient, and cost-effective water tube boiler types. With over 30 years of experience, 15,580+ global customers, and a 150,000 m² manufacturing base, ZOZEN is a partner you can trust.
