The Design of Boiler: How ZOZEN Boiler Enhances Efficiency and Reliability in Industrial Applications

In the industrial energy landscape, the design of boiler plays a decisive role in determining efficiency, safety, fuel adaptability, and operational longevity. Different industries require specific steam parameters, fuel types, and emission standards; therefore, the structure, configuration, and technology used in boiler design directly influence production stability and economic returns. From chemical plants and textile mills to food processing and paper manufacturing, the demand for well-engineered boilers continues to grow as industries seek cleaner and more efficient heat solutions. Among the numerous manufacturers in the market, ZOZEN Boiler stands out with its expertise in customized system design, focusing on practical efficiency and technical reliability across a wide range of fuel types and capacities.

ZOZEN Boiler’s approach to the design of boiler centers around optimizing combustion, enhancing heat transfer, and ensuring safe operation through refined structural engineering. The company’s products, such as the SZL series coal-fired steam boiler, DZL series biomass boiler, and WNS series gas/oil-fired boiler, have been widely applied in paper manufacturing, textile dyeing, food processing, and chemical production. Each of these series integrates robust design principles with advanced automation systems to achieve stable steam output, reduced emissions, and long service life under diverse operating conditions.

Refined Design of Boiler in ZOZEN Products

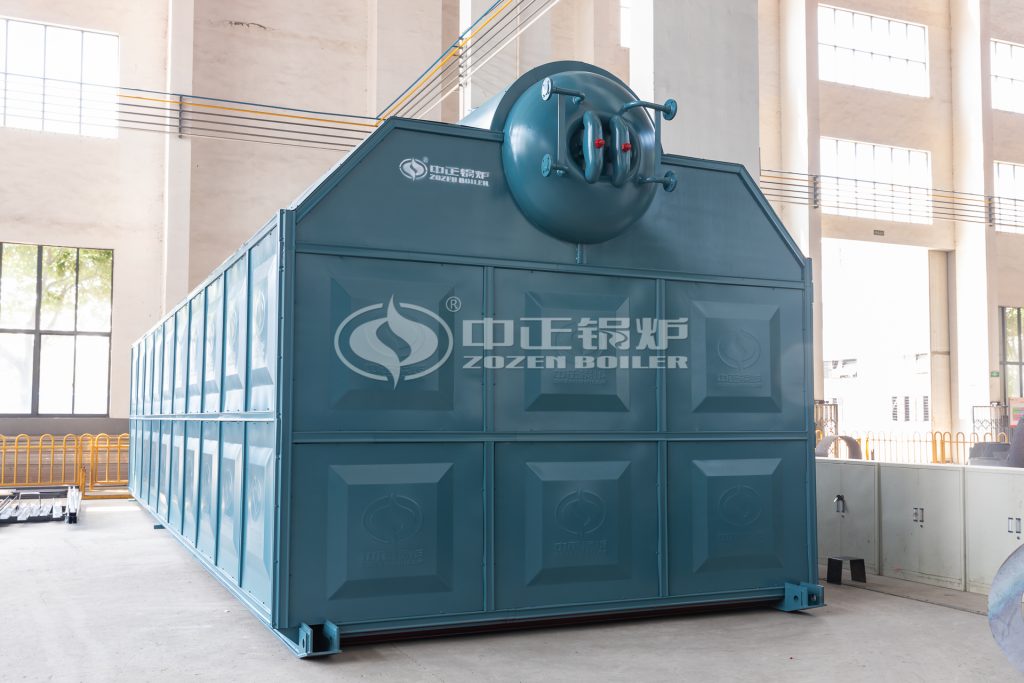

The SZL series is a double-drum, chain-grate boiler design with a water-tube structure, well-suited for medium and large-scale steam demands. This series adopts a longitudinal layout, where the front part of the boiler body is composed of the furnace chamber and membrane-type water walls, while the rear section includes the convection heating surface and economizer. Its design enables natural circulation and optimal heat transfer between flue gas and water tubes, enhancing operational safety and thermal efficiency.Durability is reinforced through the use of high-quality steel plates for the drum and seamless steel tubes for water walls, while the membrane-type design minimizes heat loss and air leakage. From a design of boiler perspective, the SZL series integrates structural simplicity with high efficiency, enabling continuous and reliable steam generation for demanding industrial processes such as in paper mills, textile dyeing, and sugar production.

The DZL series reflects ZOZEN’s innovation in the design of boiler for biomass fuels. This single-drum chain-grate boiler uses a horizontal layout with a water-fire tube combined structure, delivering both compactness and performance. The furnace chamber is equipped with threaded flue tubes and high-efficiency heat exchangers that enhance convective heat transfer, improving thermal efficiency while maintaining consistent output under varying loads.The fuel flexibility of the DZL boiler includes biomass pellets, wood chips, rice husks, and agricultural residues, enabling users to benefit from renewable and cost-effective energy sources. The boiler adopts a unique dust-separation design and multi-level air distribution to promote complete combustion and reduce particulate emissions. The efficiency can reach approximately 88%, depending on fuel type and operation.Its design of boiler emphasizes environmental responsibility as well as economic practicality.

The WNS series represents ZOZEN’s achievements in the design of boiler for cleaner energy applications. It is a horizontal, internal combustion, wet-back boiler with a three-pass structure. This configuration ensures that the high-temperature flue gas passes through the furnace and tube bundles three times, maximizing heat absorption and enhancing fuel utilization. The large-diameter corrugated furnace allows for complete combustion, reducing emissions while improving operational stability.The WNS series typically reaches a thermal efficiency of up to 98% when equipped with a condensing economizer. It supports natural gas, light oil, or mixed fuel combustion, and can be configured with low-NOx burners to meet strict emission standards. The boiler body uses a full wet-back design with a large steam space to ensure high-quality steam with stable pressure, which is essential for precision manufacturing industries.

ZOZEN SZL Series in a Paper Manufacturing Project in Afghanistan

A paper mill in Afghanistan selected ZOZEN’s SZL series 25-ton/hour coal-fired steam boiler to meet its production needs for stable, high-quality steam. Paper manufacturing requires a consistent steam supply for drying cylinders and pulp processing, and the plant’s decision was guided by both performance and adaptability considerations.

The design of boiler in the SZL series proved particularly suitable for this application. Its dual-drum water-tube configuration offered a balanced heat distribution, while the wide furnace chamber allowed efficient combustion even with varying coal grades. The boiler achieved a thermal efficiency exceeding 81%, supporting multiple coal types with reliable stability.

ZOZEN’s engineering team provided on-site installation guidance and technical documentation, ensuring seamless integration with the plant’s process lines. The operation has since demonstrated stable output and reliable pressure control, reflecting the success of ZOZEN’s practical and adaptive boiler design principles.

This project highlights the critical aspects of steam stability, energy efficiency, and maintainability that are central to the paper industry. By integrating fuel flexibility, efficient heat transfer, and a strong service system, ZOZEN helped the client achieve faster commissioning and long-term steady operation—three cornerstones of effective boiler design in industrial environments.

Why ZOZEN Excels in the Design of Boiler

As a manufacturer with over 35 years of experience, ZOZEN Boiler has continuously evolved its design philosophy to combine safety, efficiency, and sustainability. Every product—from coal and biomass to oil and gas boilers—is designed through a standardized engineering process that considers thermodynamic optimization, combustion stability, and ease of maintenance.

The company’s design of boiler approach extends beyond product structure to include system integration. ZOZEN’s R&D center employs advanced modeling tools to simulate fluid dynamics, combustion efficiency, and stress analysis, ensuring that each unit performs consistently under varying industrial loads. In addition, the company’s after-sales service covers commissioning, remote diagnostics, and technical training, helping users maintain efficient and safe operations over the boiler’s lifespan.

By focusing on scientific design, global certification, and engineering professionalism, ZOZEN Boiler has established a reputation for delivering dependable heat solutions across industries and continents. Whether for energy-intensive sectors such as chemicals, textiles, or paper production, the company’s designs combine technological depth with application insight.
