Reliable Energy Solutions with ZOZEN Vertical Thermal Oil Boiler

In modern industrial production, energy systems must deliver not only efficiency but also stability and compliance with stringent environmental standards. Among the various thermal energy supply systems, the vertical thermal oil boiler has become an increasingly popular choice. Unlike steam boilers, which rely on phase change, thermal oil boilers transfer heat directly to process equipment through organic heat carrier media, offering stable high-temperature output at relatively low operating pressures. The vertical configuration, in particular, has proven advantageous where floor space is limited and continuous thermal supply is critical.

As global environmental regulations become more demanding, companies increasingly evaluate boilers not just on upfront cost but on lifecycle performance and emissions. This has highlighted the role of manufacturers like ZOZEN Boiler, who combine proven design expertise with advanced combustion technology. ZOZEN has established itself as a trusted supplier of high-quality industrial boilers, with its YQL vertical thermal oil boiler series gaining recognition across multiple industries.

YQL Vertical Thermal Oil Boiler: Parameters, Features, and Advantages

The YQL vertical thermal oil boiler from ZOZEN is a fuel-fired system designed specifically to meet the high-efficiency and low-emission needs of modern enterprises. It is a forced-circulation oil-fired boiler that adopts a three-pass coil tube structure. This arrangement ensures that flue gas makes three distinct passes through tightly wound coil tubes, maximizing heat exchange and reducing energy waste.

In terms of capacity, the YQL series covers a wide thermal output range, with units designed to deliver up to tens of millions of kilocalories per hour.The operating temperature can reach up to 320°C under atmospheric pressure conditions, offering users stable heat without the risks associated with high-pressure steam.

A defining structural feature of the YQL series is its disc coil configuration, which not only improves heat transfer efficiency but also allows for compact installation. Unlike horizontal layouts, the vertical design saves plant space and facilitates easier maintenance access. The inner coil is arranged to create a uniform velocity of the heat carrier, reducing hotspots and ensuring long-term reliability.From a combustion standpoint, the YQL boiler is typically equipped with advanced low-NOx burners. In practical operation, this enables the vertical thermal oil boiler to achieve NOx emissions lower than 30 mg/Nm³, aligning with stringent international standards.

Thermal efficiency is another strength of the YQL series. Thanks to the three-pass coil arrangement and effective insulation, heat utilization reaches above 92% in optimized configurations. The boiler shell is insulated with high-density materials, minimizing radiation heat losses. Meanwhile, the closed circulation system prevents evaporation and degradation of the heat transfer medium, prolonging the service life of thermal oil and lowering replacement costs.

When considering investment, businesses often compare equipment pricing in relation to long-term benefits. While diesel boiler price remains a frequent topic in procurement discussions, it is important to evaluate cost-effectiveness in terms of energy efficiency, emission compliance, and system lifespan. The YQL vertical thermal oil boiler strikes a balance by delivering strong performance metrics that reduce fuel consumption and maintenance costs over time, justifying the upfront expenditure.

Another advantage lies in automation and safety. The YQL series is equipped with advanced control systems capable of real-time monitoring of flow, pressure, and temperature. Safety interlocks are embedded into the design, shutting down the system in case of abnormal operation. This ensures not only compliance with safety codes but also peace of mind for operators who rely on the boiler for uninterrupted production.

Supplying Stable Energy to a Fine Chemical Enterprise

To illustrate how ZOZEN’s vertical thermal oil boiler functions in real-world applications, consider a project with a fine chemical enterprise that required high standards of efficiency, stability, and environmental performance. In fine chemical production, heat demand is both continuous and precise, as reaction processes and material treatments are highly sensitive to temperature variations. Additionally, environmental compliance was a core requirement, given the company’s strategy of aligning with low-carbon and green manufacturing trends.

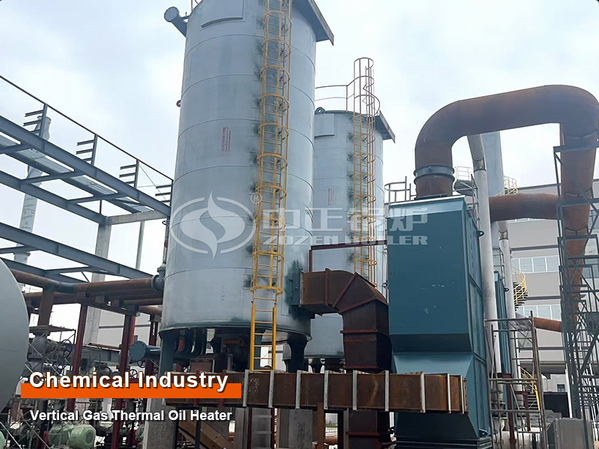

ZOZEN Boiler supplied an 800 million kcal/h YQL vertical thermal oil boiler to the client. The system featured a three-pass disc coil structure combined with a low-NOx combustion device, achieving emission levels under 30 mg/Nm³. This not only met but also exceeded the client’s regulatory compliance requirements, ensuring smooth environmental approvals.

At present, the boiler installation has been completed, though commissioning has not yet taken place as the natural gas supply is still being prepared. Once the commissioning is finalized, the vertical thermal oil boiler will provide a stable stream of high-temperature heat for chemical production lines, enabling the enterprise to achieve consistent product quality. Importantly, the client has integrated this project into its broader strategy of green, low-carbon, and digital transformation.

The YQL boiler’s automated control system allows for precise regulation of heat output, ensuring stable operation even under variable load conditions. This was a decisive factor for the chemical enterprise, as production cycles often shift between different processes that require steady thermal supply. With the system in place, the enterprise is expected to reduce both operating costs and carbon footprint, thereby enhancing its competitive edge in an industry that demands both innovation and sustainability.

This case not only reflects the technical adaptability of ZOZEN’s equipment but also demonstrates how vertical thermal oil boiler projects can align with broader industry goals. By addressing efficiency, emissions, and operational continuity, ZOZEN provided a tailored solution that directly supported the client’s development strategy.

Why Choose ZOZEN Vertical Thermal Oil Boiler

For enterprises seeking reliable heat supply solutions, the vertical thermal oil boiler represents a strategic investment. However, the choice of supplier is as critical as the choice of equipment. ZOZEN Boiler differentiates itself not only with technical expertise but also with comprehensive after-sales service. From the design and manufacturing stage through to installation guidance, commissioning, and operator training, ZOZEN ensures that every project is supported by a professional team.

After-sales service includes regular technical follow-ups, remote diagnostic support, and on-site maintenance where required. For industries like fine chemicals, where downtime can mean substantial losses, such responsive service is a decisive factor. Moreover, ZOZEN’s emphasis on international certifications, from CE to ASME, provides additional confidence for clients operating in regulated markets.

When evaluating vertical thermal oil boiler options, enterprises must consider not only upfront purchase costs but also operational efficiency, emission compliance, and service reliability. ZOZEN Boiler has built its reputation by consistently delivering in these areas. The YQL series, in particular, represents a balance between cutting-edge technology and practical usability, enabling clients to achieve long-term value.
