Steam Boiler Sizing and ZOZEN Product Solutions
The WNS fuel and gas steam boiler represents a classic horizontal internal combustion configuration. It adopts a full-wet-back structure with a large diameter corrugated furnace and threaded smoke tubes, forming sufficient heat transfer surface and good thermal expansion adaptability. This design allows the boiler to maintain stable evaporation capacity under long-term continuous operation and more uniform heat absorption, which is highly relevant for steam boiler sizing, because many users in light industry and food processing require stable load with frequent process changes. The WNS series can match natural gas, biogas, diesel, heavy oil or other clean fuels according to user conditions, while advanced combustion adjustment systems help maintain high efficiency across a wide load range. For steam boiler sizing, this flexibility means that designers can consider not only peak steam consumption but also daily fluctuation patterns, ensuring that the selected capacity neither wastes fuel during low loads nor restricts production at peak loads.
The DZL three-drum biomass steam boiler with anti-ash-accumulation design provides another dimension of steam boiler sizing, especially in regions rich in agricultural and forestry solid fuels. Its chain-grate layer combustion system and specially optimized furnace arch and air distribution structure enable more complete fuel burning and effective reduction of ash deposition inside convection heating surfaces. When enterprises plan steam boiler sizing for biomass fuel scenarios, the combustion characteristics, volatile content and ash composition of the biomass directly influence the real output of the boiler, and ZOZEN’s structural optimization helps narrow the gap between theoretical evaporation capacity and actual usable steam production, which is crucial for reliable sizing. In addition, this series is suitable for many biomass fuels without involving the fuel types you prohibited, and its overall system performance supports long-term stable steam supply for processes requiring consistent heat.
The SZL coal-fired steam boiler with chain grate is often applied in higher load industrial supply systems. Its design adopts a larger heating surface arrangement, split furnace and convection section, along with adjustable secondary air layout to promote better combustion of coal with different volatile contents. In the process of steam boiler sizing for coal applications, engineers must consider not only nominal evaporation capacity but also actual coal characteristics at project locations, as combustion efficiency, slagging behavior and air distribution affect effective steam output. ZOZEN’s experience in adapting SZL boilers for different coal qualities enables users to make more confident steam boiler sizing decisions because the expected steam capacity corresponds more closely to real operating data over long-term use rather than theoretical catalogue figures alone.
Case Background: Steam Boiler Sizing Applied in Brewery Production
In the brewing industry, steam boiler sizing becomes a central engineering task because steam is deeply involved in almost every key process step. During mashing, wort boiling, sterilization and CIP cleaning operations, a continuous and stable steam supply ensures correct saccharification temperature curves, sufficient boiling intensity, microbial control and pipeline hygiene conditions. When steam boiler sizing is inaccurate, either insufficient steam pressure leads to unstable wort evaporation rates or over-sized units cycle at low load, causing thermal inefficiency and unnecessary fuel expense.

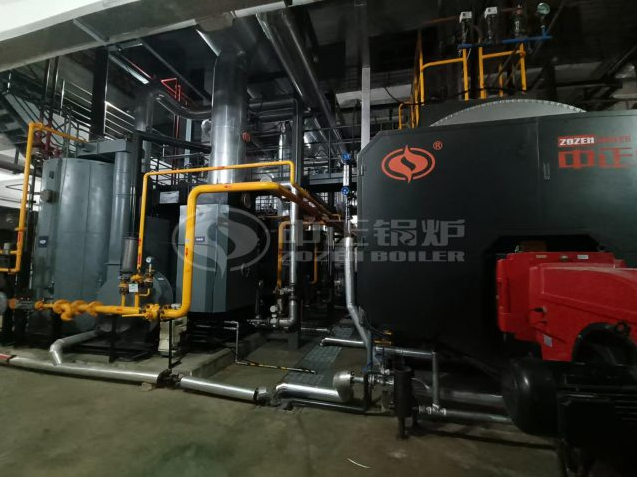

A brewery project selected the ZOZEN WNS 10-1.25-Q gas-fired steam boiler after systematic analysis of production scale, batch frequency, seasonal demand fluctuations and future expansion possibilities. In this case, steam boiler sizing was carried out by combining actual steam consumption during mashing and boiling peaks with reserve capacity for simultaneous CIP operations, and then matching these needs to the evaporation capability of the WNS series under real operating conditions. The horizontal internal combustion three-pass wet-back design provided strong structural reliability, allowing the boiler to operate for long periods at rated output without deformation or local overheating.
The low-nitrogen combustion configuration ensured that nitrogen oxide emissions were controlled at relatively low levels, which helps the brewery reduce environmental pressure while obtaining well-matched steam capacity. Through correct steam boiler sizing, the selected 10-ton steam boiler was able to provide continuous steam for parallel brewing processes without frequent load overshooting, and at the same time avoided long-term oversizing, which could have increased fuel consumption and equipment cycling losses. This case demonstrates how steam boiler sizing transforms from theoretical calculation into actual energy system performance in a modern food and beverage factory.
Steam Boiler Sizing with ZOZEN Boiler as a Reliable Partner
In modern industry, steam boiler sizing is an essential engineering step connecting production technology, environmental responsibility and economic management. Accurate sizing requires understanding process steam demand, boiler structure characteristics, fuel properties and system integration, and it benefits greatly from experienced manufacturers who can translate theoretical parameters into stable long-term operation.
ZOZEN Boiler, with its mature WNS gas-fired steam boiler, DZL three-drum biomass boiler, SZL coal-fired steam boiler and YQW thermal oil boiler series, provides a comprehensive product foundation for real-world steam boiler sizing decisions. Through many practical projects and continuous technological development, ZOZEN has formed a professional capability to support customers in selecting appropriate boiler capacity, optimizing energy use and maintaining stable production.
For enterprises planning new production lines, expanding capacity or upgrading energy systems, choosing a partner experienced in steam boiler sizing is a key step toward reliable steam supply and sustainable operation. ZOZEN Boiler integrates design, manufacturing and service experience to help users transform steam boiler sizing from a complex question into a clear, executable solution that supports efficient and steady industrial development.
