Compact Steam Boiler: Features, Industrial Value, and ZOZEN BOILER Solutions

In modern industrial production, space efficiency, energy utilization, and operational stability have become increasingly important considerations when selecting steam equipment. A compact steam boiler is designed specifically to meet these demands by combining high thermal performance with a space-saving structural layout, making it suitable for factories where installation space is limited but steam demand remains continuous and stable.

The value of a compact steam boiler is not limited to its physical size. In industrial environments such as food processing, feed manufacturing, textiles, pharmaceuticals, and light chemical production, steam quality, pressure stability, and temperature control directly influence product consistency and process reliability. A well-designed compact steam boiler ensures uniform heat transfer, stable steam output, and precise control of combustion, allowing enterprises to maintain continuous production without fluctuations in steam parameters that could affect process performance.

WNS Oil and Gas Fired Steam Boiler: Structure, Technology, and Performance Advantages

Among ZOZEN BOILER’s compact steam solutions, the WNS series oil and gas fired steam boiler stands out as a highly mature and widely applied compact steam boiler system. The WNS boiler adopts a horizontal internal combustion structure with a three-pass fire tube design, which allows the furnace and heat exchange surfaces to be arranged in a highly compact layout while maintaining efficient heat transfer performance. This structural configuration enables the boiler to achieve strong thermal efficiency within a limited installation footprint, making it particularly suitable for plants with restricted space conditions.

The WNS compact steam boiler is equipped with a fully wet-back structure, which reduces thermal stress on the rear smoke box and improves overall durability during long-term operation. The furnace is designed to ensure complete combustion of oil or gas fuel, with optimized flame shape and temperature distribution that prevent local overheating and ensure stable heat release. The multi-pass flue gas path allows high-temperature exhaust gases to transfer heat efficiently across convection tube bundles before being discharged, significantly improving heat utilization and reducing energy loss.

In terms of steam performance, the WNS compact steam boiler delivers stable pressure and temperature control, which is critical for industrial processes that rely on consistent steam parameters. The boiler’s heat exchange system ensures uniform heating of the working medium, producing high-quality saturated steam that supports stable downstream production processes such as conditioning, drying, sterilization, and heating. This stability makes the WNS boiler suitable for continuous production environments where steam interruptions or fluctuations would lead to process instability or quality deviations.

Automation and control technology further enhance the performance of the WNS compact steam boiler. Intelligent control systems regulate fuel supply, combustion air volume, ignition procedures, and load adjustment, enabling precise matching between steam output and production demand. This automated operation not only improves energy efficiency but also reduces manual intervention and operator workload, contributing to safer and more stable long-term operation.

The WNS compact steam boiler also incorporates condensation heat recovery technology in its condensing configuration, allowing waste heat from exhaust gases to be recovered and reused. This process improves overall system efficiency and enhances energy utilization, especially in applications with long operating hours and continuous steam demand. By combining efficient combustion, compact structural design, and intelligent control systems, the WNS series forms a highly integrated compact steam boiler solution suitable for a wide range of industrial sectors.

Compact Steam Boiler Application in the Feed Industry

With the rapid development of livestock, poultry, and aquaculture industries, the demand for pellet feed continues to grow. In feed production processes, steam conditioning plays a critical role in pellet quality formation, affecting parameters such as pellet strength, durability, and digestibility. The base temperature of raw materials has a significant influence on steam moisture absorption during conditioning. When the base material temperature is too high, steam absorption efficiency decreases, which negatively impacts conditioning performance. At the same time, seasonal variations in material moisture content throughout the year further complicate steam conditioning control, creating higher requirements for steam stability and quality.

In response to these technical challenges, ZOZEN BOILER’s WNS series compact steam boiler systems, with capacities ranging from 1 to 10 tons, have been widely applied in the feed industry due to their high thermal efficiency, stable steam quality, and reliable operation. Their compact structure, efficient combustion system, and stable steam output make them well suited for feed production environments where precise control of steam parameters is essential.

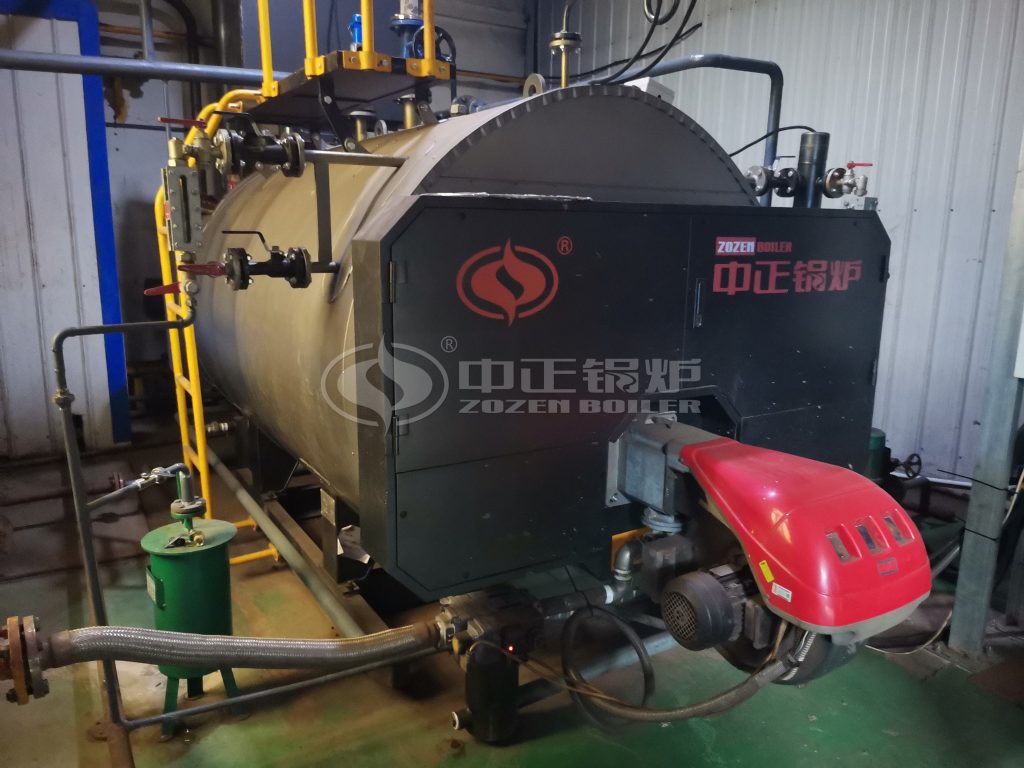

At the early construction stage of a feed factory, based on the overall plant scale and production capacity planning, the customer selected a WNS condensing gas-fired compact steam boiler from ZOZEN BOILER to provide high-quality steam for the production process. The boiler was integrated into the production system to supply stable steam for material conditioning, supporting consistent pellet formation and reliable process control.

The compact steam boiler provided high-efficiency operation and stable steam output, ensuring that conditioning parameters remained consistent despite variations in raw material temperature and moisture content. This stability allowed the feed plant to maintain uniform product quality while optimizing energy utilization within the production system. The compact layout of the WNS boiler also simplified plant installation and system integration, reducing space occupation and improving overall layout efficiency.

Technical Advantages of ZOZEN Compact Steam Boiler Solutions

ZOZEN BOILER’s compact steam boiler systems offer a balanced combination of structural efficiency, thermal performance, and operational stability. The compact layout reduces installation space requirements while maintaining effective heat exchange performance, enabling industrial plants to optimize space utilization without sacrificing steam capacity. Advanced combustion systems ensure complete fuel utilization and stable flame conditions, supporting consistent steam generation.

The intelligent control architecture of ZOZEN’s compact steam boiler solutions allows precise load adjustment and stable operation under varying production demands. This adaptability improves energy utilization and operational safety while reducing daily maintenance complexity. High-quality manufacturing processes ensure structural integrity, pressure resistance, and long-term operational reliability.

By combining engineering design expertise, standardized production systems, and application-driven development, ZOZEN BOILER provides compact steam boiler solutions that support industrial efficiency, production stability, and long-term operational sustainability. For enterprises seeking reliable steam systems with limited installation space, ZOZEN’s compact boiler solutions offer a technically mature and industrially proven choice that supports stable production and efficient energy management.
