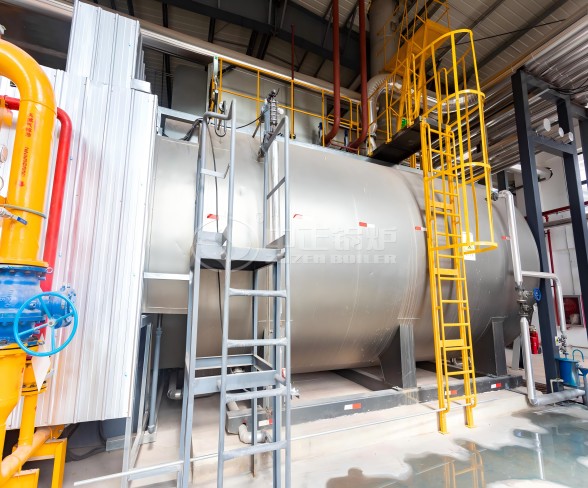

WNS Series Automatic Steam Boiler
Capacity: 1-20 t/h
Pressure: 0.7-2 MPa
Temperature: 170 – 204 °C
Fuel: Natural gas, coke oven gas, biogas, diesel, heavy oil, light oil, crude oil, etc.
Industries: Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital etc.
The WNS series automatic steam boiler features a standout highlight: its fully automatic operation. Equipped with an advanced control system, the boiler can automatically adjust parameters such as pressure and temperature, ensuring optimal performance without the need for continuous manual intervention. This automation not only enhances operational efficiency but also improves safety and reduces the risk of human error. The WNS series adopts a three-pass structure, maximizing heat exchange efficiency and minimizing energy loss. Its innovative corrugated furnace design and threaded smoke tubes effectively enhance the heat exchange process, achieving thermal efficiency of up to 98%. This high efficiency translates to lower fuel consumption and operating costs, making it an economically viable choice for businesses.
Energy Efficiency: The WNS series automatic steam boiler is equipped with an optimized combustion system, ensuring complete fuel combustion with thermal efficiency exceeding 98%. Its innovative design effectively reduces energy loss, significantly lowering operating costs.
Safety and Reliability: The WNS series is equipped with multiple safety protection devices, including pressure protection, temperature protection, and water level protection, ensuring safe operation under various conditions.
Intelligent Control: The WNS series employs a fully automatic control system that supports remote monitoring and operation, simplifying daily management and enhancing operational efficiency. Users can easily start, stop, and adjust parameters via a touchscreen.
Environmental Design: The structure of the WNS series has been optimized to reduce emissions of nitrogen oxides (NOx) and other harmful substances, meeting strict environmental standards and helping enterprises achieve green production.
| Model | Rated steam capacity (t/h) | Rated working pressure (MPa) | Rated steam temperature (℃) | Feed water temperature (℃) | Maximum transport weight (t) | Maximum transport dimension (m) |
| WNS1-0.7-Q(Y) | 1 | 0.7 | 170 | 20 | 4.5 | 3.25×1.80×2.00 |
| WNS1-1.0-Q(Y) | 1 | 1.0 | 184 | 20 | 4.5 | 3.25×1.80×2.00 |
| WNS1.5-1.0-Q(Y) | 1.5 | 1.0 | 184 | 20 | 7.0 | 3.65×2.05×2.45 |
| WNS1.5-1.25-Q(Y) | 1.5 | 1.25 | 194 | 20 | 7.0 | 3.65×2.05×2.45 |
| WNS2-1.0-Q(Y) | 2 | 1.0 | 184 | 20 | 9.0 | 4.60×2.20×2.60 |
| WNS2-1.25-Q(Y) | 2 | 1.25 | 194 | 20 | 9.0 | 4.60×2.20×2.60 |
| WNS3-1.0-Q(Y) | 3 | 1.0 | 184 | 20 | 11.5 | 5.35×2.40×2.80 |
| WNS3-1.25-Q(Y) | 3 | 1.25 | 194 | 20 | 11.5 | 5.35×2.40×2.80 |
| WNS4-1.25-Q(Y) | 4 | 1.25 | 194 | 20 | 15.0 | 5.00×2.60×2.95 |
| WNS4-1.6-Q(Y) | 4 | 1.6 | 204 | 20 | 15.0 | 5.00×2.60×2.95 |
| WNS5-1.25-Q(Y) | 5 | 1.25 | 194 | 20 | 18.0 | 5.55×2.658×3.20 |
| WNS5-1.6-Q(Y) | 5 | 1.6 | 204 | 20 | 18.0 | 5.55×2.658×3.20 |
| WNS6-1.25-Q(Y) | 6 | 1.25 | 194 | 20 | 19.5 | 5.93×2.80×3.20 |
| WNS6-1.6-Q(Y) | 6 | 1.6 | 204 | 20 | 19.5 | 5.93×2.80×3.20 |
| WNS8-1.25-Q(Y) | 8 | 1.25 | 194 | 20 | 25.0 | 7.00×2.80×3.25 |
| WNS8-1.6-Q(Y) | 8 | 1.6 | 204 | 20 | 25.0 | 7.00×2.80×3.25 |
| WNS10-1.25-Q(Y) | 10 | 1.25 | 194 | 104 | 27.5 | 7.65×2.80×3.25 |
| WNS10-1.6-Q(Y) | 10 | 1.6 | 204 | 104 | 27.5 | 7.65×2.80×3.25 |
| WNS15-1.25-Q(Y) | 15 | 1.25 | 194 | 104 | 40.0 | 7.95×3.50×3.75 |
| WNS15-1.6-Q(Y) | 15 | 1.6 | 204 | 104 | 40.0 | 7.95×3.50×3.75 |
| WNS20-1.25-Q(Y) | 20 | 1.25 | 194 | 104 | 52.0 | 8.55×3.90×4.15 |
| WNS20-1.6-Q(Y) | 20 | 1.6 | 204 | 104 | 52.0 | 8.55×3.90×4.15 |
