Understanding Boiler Chain Grate Technology and Its Industrial Applications

A boiler chain grate is essentially a conveyor belt-like mechanism composed of interlocking cast iron segments. These segments form a continuous grate surface that moves through the combustion chamber, allowing for uniform fuel distribution and air supply. The system’s design ensures that fuel progresses through distinct stages of combustion—drying, ignition, burning, and ash removal—without manual intervention. This mechanized approach not only enhances operational efficiency but also reduces labor requirements, making it a preferred choice for large-scale industrial boilers.

The boiler chain grate is central to the functionality of chain grate boilers, which are widely used in industries such as textile manufacturing, chemical processing, and food production. These boilers leverage the grate’s ability to handle diverse solid fuels,key advantages of this technology include:

– Fuel Flexibility: Adaptable to varying fuel types and calorific values.

– Continuous Operation: Ensures uninterrupted steam generation for critical processes.

– Enhanced Combustion Efficiency: Optimized air distribution minimizes unburned carbon and maximizes energy extraction.

– Low Maintenance: Robust construction and automated ash removal reduce downtime.

By integrating a boiler chain grate into their systems, industries can achieve a balance between cost-effectiveness and environmental compliance, particularly when paired with advanced flue gas treatment technologies.

ZOZEN Boilers: Engineering Excellence in Chain Grate Technology

ZOZEN BOILER has established itself as a leader in designing and manufacturing chain grate boilers tailored to meet the demands of modern industrial applications. Among its flagship products are the SZL series coal-fired steam boiler and the DZL series biomass steam boiler, both of which incorporate cutting-edge chain grate technology to deliver superior performance and sustainability.

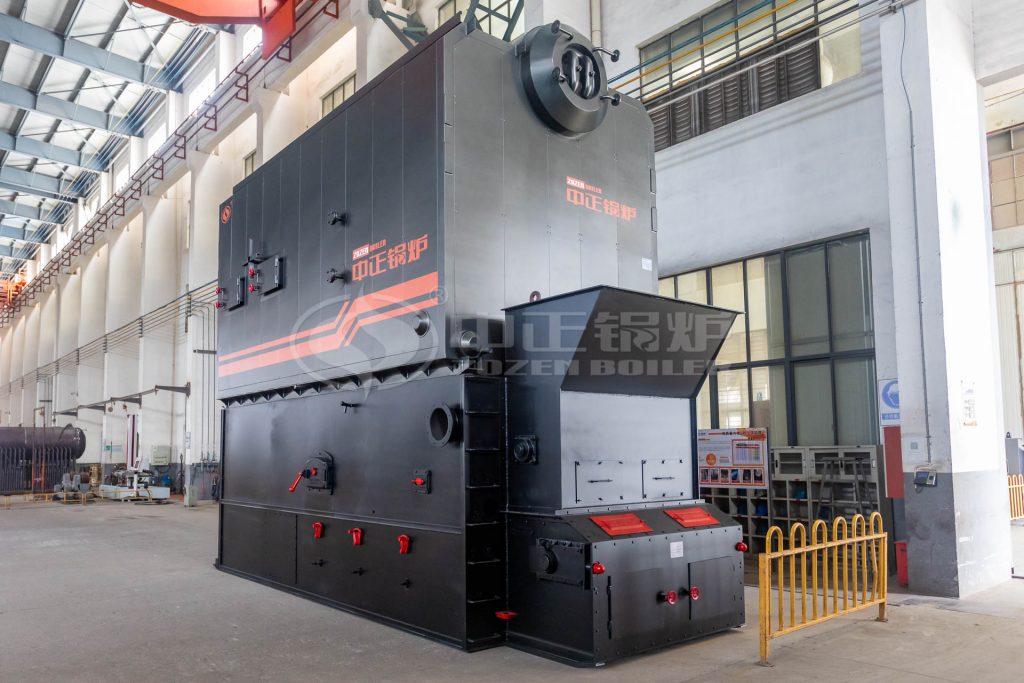

The SZL series coal-fired steam boilers embody ZOZEN Boiler’s expertise in optimizing solid fuel combustion. The boiler uses a water-cooled wall tube structure with a dense arrangement and a customized boiler system, with a large radiation area and improved thermal efficiency. The design of its independent wind chamber can adjust the air distribution according to the combustion conditions to ensure efficient and stable combustion of coal. In addition, SZL can be used for a variety of coal types such as bituminous coal, lean coal, and anthracite.

For industries that prioritize renewable energy, ZOZEN’s DZL series biomass steam boilers provide a sustainable alternative. The chain grate of this boiler is specially suitable for burning biomass fuels such as straw, wood blocks, and palm shells. The combustion equipment uses a light chain grate; the overall quick-install form is shipped from the factory, with a compact structure, easy on-site installation, short cycle, and low infrastructure investment. The electrical control realizes stepless grate speed regulation, limit parameter alarm and interlock protection.

Both the SZL and DZL series use advanced control systems, and the fuel supply, ash discharge, and slag discharge are highly automated. These innovations make ZOZEN’s chain grate boilers an ideal solution for industries seeking to balance operational demands and environmental responsibilities.

Case Study: Powering Tobacco Processing in Indonesia

A tobacco processing plant in Surabaya, Indonesia, faced significant challenges with its aging boiler system. The facility’s existing boiler, a conventional coal-fired unit, struggled to meet the steam requirements for continuous tobacco curing cycles. Frequent breakdowns and inefficiencies in combustion led to inconsistent product quality and rising operational costs. Additionally, the plant was under pressure to reduce emissions to comply with local environmental regulations.

After researching boiler chain grate solutions, the client turned to ZOZEN Boilers for a tailored system. ZOZEN’s engineering team conducted a thorough analysis of the plant’s needs, including steam demand, fuel availability, and climatic conditions. Based on this assessment, ZOZEN recommended the SZL series 6-ton coal-fired steam boiler, a model specifically designed for high-load industrial applications.

This boiler not only meets the factory’s demand for steam, but also demonstrates high efficiency and environmental protection during operation. When designing this boiler, ZOZEN Boiler fully considered the climate characteristics of Surabaya, Indonesia and the types of fuel available locally to ensure that the boiler can operate stably under changing environmental conditions. With the technical support of ZOZEN Boiler, the customer’s tobacco processing line has achieved higher energy utilization and lower environmental emissions.\

The boiler chain grate’s automated operation also minimized manual intervention, allowing the plant to allocate resources to other production tasks. Most importantly, the consistent steam supply enhanced the quality of cured tobacco, meeting the client’s goal of delivering premium products to both domestic and international markets.

ZOZEN’s Commitment to Customer Success

Beyond delivering high-performance boiler chain grate systems, ZOZEN Boilers distinguishes itself through its comprehensive after-sales support. Recognizing that the success of a boiler extends beyond installation, ZOZEN provides end-to-end services, including technical consultations, on-site commissioning, and preventive maintenance programs. This approach ensures that clients maximize the lifespan and efficiency of their systems while minimizing unexpected downtime.

ZOZEN’s global service network enables rapid response to client inquiries, with regional teams equipped to address technical challenges in diverse environments. Whether through remote diagnostics or hands-on training for plant operators, ZOZEN empowers its customers to operate their boiler chain grate systems with confidence. Additionally, the company’s focus on continuous innovation ensures that its boilers remain at the forefront of energy efficiency and environmental compliance.

The boiler chain grate is more than a mechanical component—it is a linchpin of industrial energy systems that demand reliability, fuel flexibility, and environmental responsibility. ZOZEN Boilers’ SZL and DZL series exemplify how cutting-edge engineering can transform traditional combustion processes into sustainable, high-efficiency solutions.

From powering tobacco curing in Indonesia to supporting textile dyeing in Central Asia, ZOZEN’s boiler chain grate technology continues to redefine industry standards. By prioritizing innovation, customization, and customer support, ZOZEN ensures that every boiler installation becomes a cornerstone of operational excellence.

In an era where energy efficiency and sustainability are paramount, the boiler chain grate represents a strategic investment for industries seeking to balance productivity with environmental stewardship. With ZOZEN Boilers as a partner, businesses can harness the full potential of this technology, driving progress while meeting the challenges of tomorrow.
