Three Pass Steam Boiler: The Cornerstone of Efficient and Stable Industrial Steam Supply

In today’s industrial landscape, the demand for high-efficiency, low-emission, and stable steam generation is stronger than ever. Among the many boiler technologies available, the three pass steam boiler stands out as a widely adopted solution for industries that rely heavily on thermal energy.

A three pass steam boiler is characterized by its optimized flue gas flow path. The combustion gases pass through the furnace and then circulate through three sets of smoke tubes before exiting the boiler. This design maximizes heat transfer, ensures complete combustion, and significantly improves thermal efficiency. Compared to earlier single-pass or two-pass designs, the three pass structure allows for longer residence time of flue gas within the boiler, enhancing heat absorption and reducing heat loss.

One of the core strengths of the three pass steam boiler is its ability to maintain stable operation under varying load conditions. The uniform temperature distribution and reduced thermal stress on pressure components contribute to longer service life and fewer maintenance interruptions. Additionally, the compact layout of the three pass configuration allows for efficient space utilization in industrial settings, making it suitable for facilities with limited floor space.

The efficient combustion and heat transfer performance of a three pass boiler also contribute to its environmental advantages. With proper burner configuration and flue gas treatment, it can achieve low emissions of nitrogen oxides (NOx) and particulate matter, supporting enterprises in meeting ever-stricter environmental regulations.

ZOZEN Boiler’s WNS Three Pass Steam Boiler: Designed for High-Performance Applications

As an industry leader in boiler manufacturing, ZOZEN Boiler has developed a range of high-efficiency three pass steam boilers, with the WNS series being one of the most popular and trusted models in the market. Engineered with advanced combustion and control technologies, the WNS series is tailored to meet the operational and environmental needs of modern industrial users.

The ZOZEN WNS three pass steam boiler is a horizontal, wet-back fire tube boiler that integrates a large-diameter corrugated furnace and high-efficiency threaded smoke tubes. This combination greatly enhances heat transfer and allows for a thermal efficiency of over 98%, reducing fuel consumption and lowering operating costs.

The wet-back structure ensures that the combustion chamber is completely surrounded by water, which not only improves heat absorption but also protects the rear tube sheet from high-temperature flue gas, extending the boiler’s service life. The WNS boiler is also equipped with a fully automatic control system that supports one-button start, intelligent load adjustment, and real-time monitoring of pressure, temperature, and combustion status.

Another notable feature of the WNS three pass steam boiler is its ultra-low NOx burner, which achieves NOx emissions below 30mg/Nm³. This makes the boiler fully compliant with international environmental standards and ideal for companies that prioritize green manufacturing and sustainable development.

The WNS series has become a preferred choice for industries such as food and beverage, chemicals, textiles, and especially alcohol production, where steam quality and stability are key to maintaining product consistency and efficiency.

Case Study: ZOZEN WNS Three Pass Steam Boiler Powers Dukang Distillery’s Modernization

A compelling example of the WNS series’ performance can be seen in its application at Dukang Distillery, a renowned Chinese liquor enterprise with a rich history and a commitment to innovation. The company operates a large-scale production base where steam plays a critical role in the brewing, distillation, sterilization, and cleaning processes.

For Dukang, steam is not just an energy source—it is integral to the flavor, purity, and quality of its liquor products. As the company expanded operations and upgraded its production lines, it faced two major challenges: ensuring a stable steam supply for continuous production and achieving higher energy efficiency in response to national environmental policies and rising fuel costs.

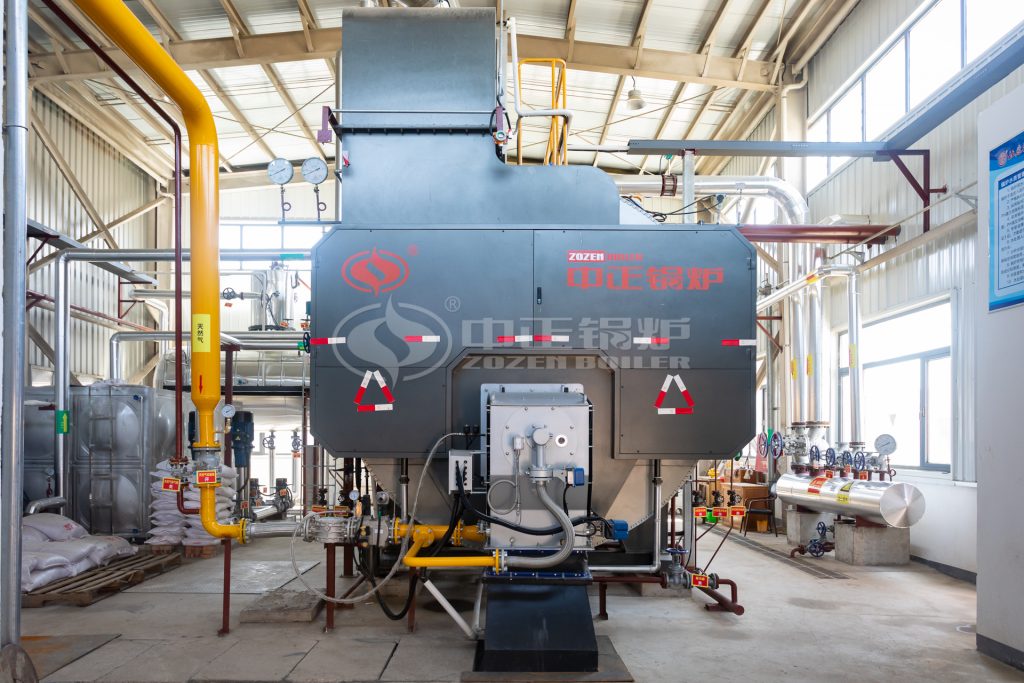

In 2022, Dukang Distillery partnered with ZOZEN Boiler and purchased a WNS series three pass steam boiler to support its modernized production facility. The decision was based on the boiler’s proven advantages in performance, reliability, and environmental compatibility.

The ZOZEN boiler delivered precisely what Dukang required. Its large corrugated furnace provided strong combustion support, while the high-efficiency threaded smoke tubes ensured optimal heat exchange. These features combined to achieve a thermal efficiency exceeding 98%, significantly reducing the distillery’s gas consumption and operating expenses.

The boiler’s intelligent control system simplified operations, this not only improved safety and ease of use but also enhanced the responsiveness of the steam system to production demands.And the low NOx burner helped Dukang comply with stringent emission standards. With nitrogen oxide emissions well below regulatory thresholds, the distillery was able to maintain its green manufacturing commitment, reinforcing its brand image in an increasingly eco-conscious market.

Thanks to the WNS three pass steam boiler, Dukang Distillery achieved higher production efficiency, lower energy consumption, and stable steam output—all essential for delivering high-quality liquor products to the market.

Why Three Pass Steam Boilers Are the Ideal Choice for High-Demand Industries

The advantages of the three pass steam boiler extend across a wide range of industries. Its ability to produce high-temperature, high-pressure steam with consistent output makes it ideal for sectors where thermal energy is tightly linked to product quality and process efficiency.

Industries such as distilleries, dairies, food processing plants, pharmaceutical manufacturers, textile mills, and industrial laundries all benefit from the three pass design. The boiler’s efficient heat transfer reduces fuel costs, while its robust structure supports long-term, heavy-duty operation.

Choosing a three pass steam boiler means investing in a solution that balances energy efficiency, environmental compliance, equipment longevity, and intelligent operation. It is not just a source of steam—it is a key component of sustainable industrial productivity.

ZOZEN Boiler—Your Reliable Partner for Three Pass Steam Boiler Solutions

As industries continue to evolve in pursuit of higher efficiency and cleaner energy use, the three pass steam boiler remains a trusted solution for stable, efficient, and environmentally responsible steam generation. Its proven design and performance make it a valuable asset for any enterprise seeking to optimize its thermal energy systems.

ZOZEN Boiler stands at the forefront of this technological landscape, offering world-class three pass steam boiler solutions such as the WNS series. With its strong focus on innovation, quality, and customer service, ZOZEN has become a preferred partner for industrial steam users worldwide.

To learn more about how ZOZEN’s steam boiler solutions can support your production goals, improve energy efficiency, and help meet environmental standards, visit our official website or contact our technical team today.
