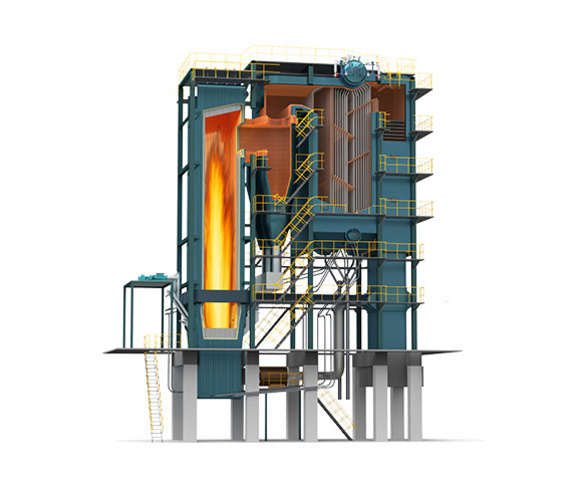

SHX Coal Fired CFB Hot Water Boiler
Capacity: 7-17.5 MW
Pressure: 1-1.6 MPa
Fuel: Bituminous coal, anthracite, meagre coal, lignite, gangue, waste, sludge
Industries: Chemical, food, tobacco, textile, printing and dyeing, feed, medicine, building material, wine, rubber, hospital
SHX series CFB coal fired boiler is a new CFB combustion technology products, it has high efficiency and low pollution clean coal technology and other combustion methods do not have the advantages.The advantages of wide adaptability of fuel, high combustion efficiency, good activity of discharged ash and slag, easy to realize comprehensive utilization and no secondary ash and slag pollution make SHX series industrial horizontal boiler products widely applied in countries paying attention to environmental protection all over the world.
Special high temperature cyclone separator effectively improve the SHX series coal fired boiler thermal efficiency of combustion efficiency, high efficiency, wear-resistant, separation rate reached more than 98%.
Unique air chamber design allows the user to freely choose the bed ignition and bed ignition two ways.
This unique design can effectively extend the residence time of coal particles in the furnace to achieve more sufficient combustion.
The steel tube type air preheater can reduce the exhaust temperature and the inlet rheumatism of the furnace very well and greatly improve the overall thermal efficiency of the boiler.
| Model | Rated thermal power (MW) | Rated working pressure (MPa) | Rated output water temperature (℃) | Rated inlet water temperature (℃) |
| SHX7-1.0/95/70 | 7 | 1.0 | 95 | 70 |
| SHX7-1.0/115/70 | 7 | 1.0 | 115 | 70 |
| SHX7-1.6/130/70 | 7 | 1.6 | 130 | 70 |
| SHX10.5-1.0/95/70 | 10.5 | 1.0 | 95 | 70 |
| SHX10.5-1.0/115/70 | 10.5 | 1.0 | 115 | 70 |
| SHX10.5-1.6/130/70 | 10.5 | 1.6 | 130 | 70 |
| SHX14-1.0/95/70 | 14 | 1.0 | 95 | 70 |
| SHX14-1.0/115/70 | 14 | 1.0 | 115 | 70 |
| SHX14-1.6/130/70 | 14 | 1.6 | 130 | 70 |
| SHX17.5-1.0/95/70 | 17.5 | 1.0 | 95 | 70 |
| SHX17.5-1.0/115/70 | 17.5 | 1.0 | 115 | 70 |
| SHX17.5-1.6/130/70 | 17.5 | 1.6 | 130 | 70 |
