Gas Steam Boiler: A Complete Guide to ZOZEN’s Gas-Fired Steam Boiler Solutions

Part 1: What Is a Gas Steam Boiler?

A steam gas boiler is an industrial steam generator that uses gaseous fuels such as natural gas, liquefied petroleum gas, coke oven gas, or biogas to produce steam for manufacturing, heating, and power generation. The working principle of a steam gas boiler follows a straightforward sequence: the burner mixes gas with air for combustion; high-temperature flue gases flow through the furnace and convection heating surfaces; water inside the tubes absorbs the heat and converts to steam; the steam is then distributed to production lines for heating, sterilization, drying, or power generation.

Part 2: Key Advantages of Gas Steam Boilers

A modern gas steam boiler offers several compelling advantages that make it the preferred choice for a wide range of industrial applications.

1. High Thermal Efficiency

ZOZEN’s gas steam boiler achieves high thermal efficiency through optimized combustion chamber geometry, extended flue gas flow path, and integrated waste heat recovery systems. The boiler design maximizes heat absorption from the combustion process while minimizing heat loss through the boiler shell. By reducing exhaust gas temperature and improving heat transfer across all heating surfaces, the system extracts more usable energy from the same amount of fuel. As a result, high thermal efficiency significantly lowering fuel consumption and reducing carbon emissions compared to conventional designs.

2. Clean Combustion and Environmental Protection

A gas steam boiler produces no SO₂ emissions and very low dust levels. Furthermore, ZOZEN’s gas steam boilers are equipped with low-NOx, meeting the most stringent environmental regulations.

3. Fully Automatic Safe Operation

ZOZEN’s gas steam boiler features a fully automatic control system that integrates boiler IoT, remote control, and expert management. The system continuously monitors critical parameters such as steam pressure, water level, and flue gas temperature, adjusting burner operation and feedwater supply as needed to maintain safe and efficient operation. The cloud platform enables remote monitoring and synchronous alarm notification, allowing for prompt response to any abnormal conditions.

4. Easy Maintenance and Unattended Operation

The advanced control system of ZOZEN’s gas steam boiler allows for unattended operation, reducing labor costs and improving operational consistency. The boilers are also designed for easy maintenance, with manholes at the top and bottom of the boiler drum and inspection doors at the rear of the boiler for easy access.

Part 3: Main Types of Gas Steam Boiler – ZOZEN Product Line

ZOZEN offers a comprehensive range of gas steam boiler products to meet the diverse needs of industrial applications.

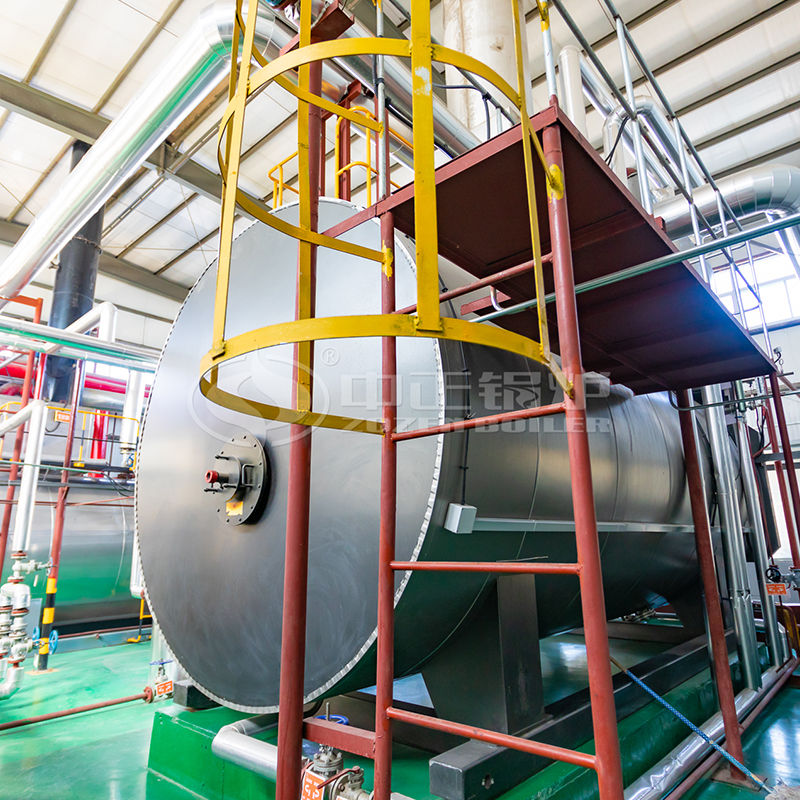

1. WNS Series Gas-Fired (Oil-Fired) Steam Boiler

The WNS series is a horizontal internal combustion boiler with a three-pass, wet-back oil/gas fired design. Available in capacities from 1 to 20 t/h, working pressures from 0.7 to 2 MPa and thermal efficiency exceeds 98%, this boiler is suitable for a wide range of industries, including heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, and hospital. The WNS series steam gas boiler features a large furnace volume with sufficient steam storage and heating area to ensure high thermal power and quality steam. Its corrugated furnace enhances flue gas disturbance and heat transfer efficiency while improving furnace strength and elasticity, while the threaded smoke tubes extend flue gas residence time to achieve heat transfer efficiency 1.4 times higher than regular smoke tubes. An economizer and condenser further improve thermal efficiency to over 98%, and the hinged smoke box structure with good sealing effect makes maintenance, inspection, and cleaning easy.

2. SZS Series Gas-Fired (Oil-Fired) Steam Boiler

The SZS series is a double-drum, longitudinal arranged, “D” type chamber structure boiler. With capacities from 2 to 110 t/h and working pressures from 1.25 to 5.3 MPa, it is designed for larger industrial applications. The furnace is on the right side and the convection tube bundle is on the left, with a super heater arranged at the convection tube bundle. The SZS series steam gas boiler features manholes at the top and bottom of the boiler drum and an inspection door at the rear, making maintenance and cleaning easy. Its membrane wall structure with front and rear sealing extends the boiler’s lifespan to over 20 years, and sealed welding prevents smoke and water leakage. For safe operation, the boiler is equipped with an explosion door and flame sensor, as well as water level regulation and alarms for high/low water and over-pressure. Full membrane water-cooled walls enhance heat transfer, while micro-positive pressure combustion ensures no smoke and pollution-free operation.

3. ZZ Series Gas-Fired (Oil-Fired) Power Plant Steam Boiler

The ZZ series gas steam boiler is designed for thermal power plants, thermal power stations, and various industrial enterprises. With capacities from 20 to 130 t/h and working pressures from 3.82 to 5.4 MPa, it is available in three configurations:

a) “D” type structure (dual drums): The ZZ series water tube steam boiler adopts the “D” type structure. The furnace is on the right side and the convection tube bundle is on the left. Around the furnace is the membrane water wall.

b) “O” type medium-temperature and medium-pressure oil/gas steam boiler: Following the concept of energy conservation and environmental protection, ZOZEN Boiler has innovatively developed the “O” type medium temperature and medium pressure oil/gas steam boiler, which has obtained a national utility model patent.

c) Corner tube gas boiler: The corner tube gas boiler is a compact and efficient boiler that utilizes a pipe system as its skeleton. It features a fully enclosed membrane wall structure, flag tube design for the convective heating surface, and is widely used due to its compact structure and rapid temperature rise.

Part 4: How to Choose the Right Gas Steam Boiler and Why ZOZEN

Selecting the right gas steam boiler for your industrial application requires careful consideration of several factors:

1. Steam Capacity and Working Pressure: Determine the required steam capacity (t/h) and working pressure (MPa) based on your production processes. ZOZEN offers a wide range of capacities, from 1 t/h for small applications to 130 t/h for power plant applications.

2. Fuel Availability and Type: Ensure a reliable supply of natural gas, LPG, or other gaseous fuels. ZOZEN’s gas steam boiler products are designed to accommodate various gaseous fuels, including natural gas, coke oven gas, biogas, and others.

3. Space Constraints: Consider the available space for boiler installation. ZOZEN’s WNS series and skid-mounted boilers offer compact designs that require minimal floor space, while the SZS and ZZ series are suitable for larger installations.

4. Environmental Regulations: Evaluate local emissions standards. ZOZEN’s gas steam boilers feature low-NOx burners, meeting the most stringent environmental regulations.

5. Automation and Maintenance Requirements: Consider the level of automation and ease of maintenance needed. ZOZEN’s boilers feature advanced control systems that allow for unattended operation, reducing labor costs and improving operational consistency.

ZOZEN Boiler stands out as a leading manufacturer of industrial boilers, offering strong comprehensive strength and quality assurance backed by ISO9001:2015 certification, PRC Grade A Manufacture License, and ASME “S” and “U” stamps since its founding in 1988. The company provides customized boiler system solutions through its dedicated engineering team, working with customers across food processing, textile mills, chemical plants, and thermal power stations to design systems that meet specific requirements. Advanced manufacturing processes including digital material cutting, automated welding, mold-based assembly, and a comprehensive quality inspection system ensure every boiler meets the highest standards. ZOZEN also delivers comprehensive after-sales service with 12 months of free maintenance, 24/7 online customer support, and 365-day service availability. Additionally, ZOZEN’s gas steam boiler products are equipped with advanced IoT technology for remote monitoring and control, with a cloud platform enabling real-time parameter tracking and synchronous alarm notification for prompt response to any abnormal conditions.
