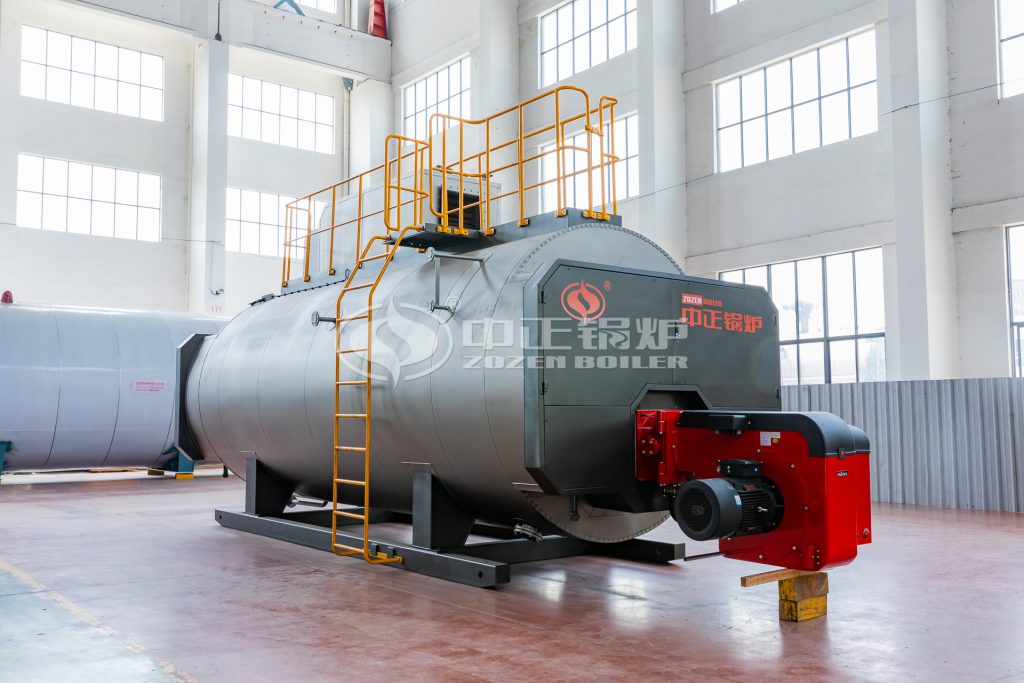

The WNS series oil/gas-fired steam boiler exemplifies ZOZEN’s definitive approach to horizontal fire-tube design of steam boiler, engineered specifically for facilities prioritizing spatial efficiency and emission compliance. The three-pass thermal exchange process begins in the wave-shaped furnace , where flame radiation transfers heat to water walls. High-temperature flue gases then reverse through symmetrical tube bundles, with spirally corrugated flue tubes enhancing turbulence and heat absorption without increasing pressure drop. Finally, gases traverse an optimized third pass toward the economizer, recovering residual heat before chimney discharge. The wet-back combustion chamber, sealed with high-temperature gaskets, eliminates thermal stress cracks common in dry-back designs, extending service life in cyclic operations. Corrugated furnace design creates extended heat absorption surfaces while resisting deformation under thermal expansion, and integrated economizers recover waste heat to elevate efficiency. Crucially, the PLC control ensuring the design of steam boiler delivers consistent performance where thermal reliability directly impacts production outcomes.

The DZL series three-drum biomass steam boiler is designed specifically for biomass feedstock. This boiler features an assembled structure consisting of two large sections: the upper section serves as the main heating surface, and the lower section houses the combustion equipment. The boiler’s perimeter and partition walls utilize a fully sealed membrane-type water-cooled wall structure. The furnace features a front-to-back arch-covered structure. The convection heating surface utilizes an advanced convection heating surface layout, reducing the burden on the dust collector and contributing to environmental protection. A sootblower is located on the rear convection heating surface, and holes for sootblower pipes are provided at the top of the furnace. Sootblower types can be selected based on the fuel type, allowing for ash removal without shutting down the boiler. This configuration redefines energy-efficient steam boiler design, from technical specifications to operational empowerment.

For coal-based operations, the SZL series coal-fired steam boiler offers a powerful solution. Its dual-drum, longitudinally arranged chain grate system is optimized for regional coal variations. The water-cooled furnace wall forms the radiant heating surface of the combustion chamber. Convection tube bundles located between the upper and lower drums maximize heat absorption during flue gas flow. The SZL series enhances operational confidence through engineering design that respects the actual fuel ecosystem without compromising steam consistency. Each solution embodies the ZOZEN Boiler philosophy: adapting core technology to local energy conditions while prioritizing structural integrity over raw capacity.
