Understanding the China Coal Fired Boiler Market and Industrial Applications

In the global energy landscape, coal-fired boilers remain an important part of industrial production, particularly in regions where coal resources are abundant and cost-effective. The China coal fired boiler has developed through decades of technological advancement, evolving from simple manual units into high-efficiency, automatic steam systems. These boilers provide reliable thermal energy for large-scale industrial users who require consistent and high-temperature steam for manufacturing processes.

Among the numerous manufacturers in the field, ZOZEN Boiler stands out as a professional enterprise with more than 35 years of experience in designing, producing, and servicing industrial boilers. With strong R&D capabilities and international project experience, ZOZEN has become a recognized supplier of China coal fired boilers to markets across Asia, Africa, and Eastern Europe.

ZOZEN SZL Series Coal Fired Steam Boiler: Technical Strength and Design Advantages

The SZL series coal fired steam boiler by ZOZEN Boiler represents the mature, reliable, and efficient technology that defines modern China coal fired boilers. Designed as a double-drum, water tube boiler with a chain grate, it features a horizontal layout and an assembled structure suitable for large-capacity steam systems.

The boiler body consists of two drums—upper and lower—connected by convection tubes to form a natural circulation system. The front section of the furnace is surrounded by closely spaced water-cooled wall tubes that absorb radiant heat from combustion. The convection heating surface is arranged at the rear of the furnace to make full use of high-temperature flue gas energy before it flows to the economizer and dust collector.

The SZL series adopts advanced combustion design principles that ensure efficient and stable burning under various coal types. Its independent air chamber and sectional air distribution allow precise control of the primary and secondary air supply. This feature enables complete combustion even when using coal with fluctuating calorific values or higher ash content. The result is consistent steam generation with a thermal efficiency of more than 81%, a level that meets modern energy-saving requirements.

One of the defining advantages of ZOZEN’s SZL boiler is its broad fuel adaptability. The China coal fired boiler is designed to handle multiple coal grades—including bituminous coal, anthracite, and lean coal—making it well suited for regions with variable fuel supply and cost conditions. For international users such as those in Central and South Asia, where fuel quality and logistics can fluctuate, this flexibility significantly improves operational security and economic efficiency.

The heat exchange system of the SZL series has also been carefully engineered for efficiency and durability. The membrane wall structure minimizes heat loss, and the large furnace volume ensures a longer residence time for combustion gases. This promotes thorough burning of volatile matter and enhances the stability of steam parameters.

In terms of maintenance, ZOZEN designs each China coal fired boiler with accessibility and ease of inspection in mind. The furnace layout, tube bundle arrangement, and cleaning ports are configured to support regular maintenance and reduce downtime. The boiler is also equipped with safety interlocks, automatic control of water level and pressure, and optional monitoring systems for remote supervision, ensuring safe, long-term operation under continuous industrial loads.

Beyond hardware design, ZOZEN’s engineering process itself is a guarantee of quality. Every China coal fired boiler is built under ISO, CE, and ASME standards. The company applies advanced welding technology, non-destructive testing, and precision assembly throughout production, ensuring each system meets both domestic and international technical requirements.

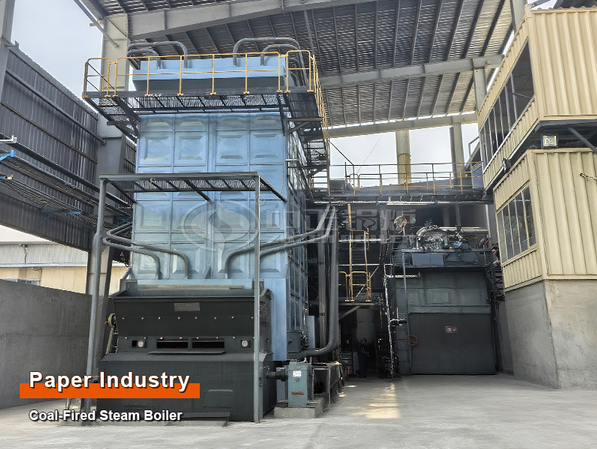

Case Study: SZL 25-Ton Coal Fired Boiler in an Afghan Paper Mill

In the paper manufacturing industry, steam plays a crucial role in both pulp processing and paper drying. The paper machine’s drying cylinder requires stable and high-quality steam to maintain consistent paper moisture, thickness, and smoothness. Therefore, the reliability and efficiency of a steam boiler directly affect final product quality and production cost.

A well-known paper mill in Afghanistan recently introduced a ZOZEN SZL series 25 ton per hour coal fired steam boiler to serve as the main thermal source for its pulping and drying processes. This project illustrates the strong adaptability and real-world performance of ZOZEN’s China coal fired boiler solutions in overseas industrial applications.

The installation process was managed under a “large capacity, higher value” principle, which prioritized efficiency and total lifecycle cost performance. ZOZEN’s engineering team provided on-site supervision throughout the project, ensuring accurate alignment, welding, and commissioning. The boiler’s first ignition and trial run were completed smoothly, with measured thermal efficiency exceeding 81%.

During operation, the system demonstrated stable combustion across different coal types, including locally sourced anthracite and mixed bituminous coal. The independent air chamber design allowed the operators to fine-tune airflow distribution, maintaining consistent flame temperature and improving overall fuel economy. Meanwhile, ZOZEN’s technical documentation and operator training ensured that the customer’s staff could independently manage daily maintenance and parameter adjustments.

As a result, the project successfully achieved its expected steam output and quality targets within a short time after commissioning. The steady supply of high-quality steam improved the performance of the paper machine drying section, contributing to enhanced productivity and lower production costs. The China coal fired boiler supplied by ZOZEN has since become a key component of the plant’s thermal energy system, providing reliable operation and supporting the mill’s sustainable production strategy.

ZOZEN Boiler: Reliable Technology and Service Behind Every China Coal Fired Boiler

In the evolving energy market, China coal fired boilers continue to play an essential role in ensuring stable steam supply for various industrial users. ZOZEN Boiler’s SZL series combines proven design with modern innovation, meeting customers’ requirements for energy efficiency, durability, and adaptability.

Each China coal fired boiler produced by ZOZEN is the result of precise design, strict quality control, and years of field experience. Its advantages lie not only in mechanical performance but also in the complete technical service chain that supports customers through every stage—from project design, installation, and commissioning to long-term maintenance.

As industrial users continue to balance operational cost, fuel security, and emission control, ZOZEN Boiler remains committed to providing tailored thermal energy solutions that optimize the total cost of ownership. For enterprises looking for durable, efficient, and adaptable steam equipment, choosing a China coal fired boiler from ZOZEN means gaining both reliable technology and strong service assurance—delivering long-term economic and environmental benefits.
